General Operating Specifications
Configuration Options	1-4 potentiostats (Guard cell potentiostat standard feature)
Operating Modes	DC, Pulse, Scan and Timeline
Potential Range	+ 2000 mV in 1 mV steps
Full Scale Current range	100 pA to 100 µA in 1-2-5 sequence
Filter Time Constants	0.2 to 10 seconds in 1-2-5 sequence (DC mode)
Noise Specifications	< 8 pA peak to peak with a 10 MΩ 2µF dummy load and a 2 second filter (DC mode)
Signal Output	+100 mV, + 1 V, + 10 V
Output Resolution	+ 16 bit (30 µV at 1 V signal output)
Output Offset	+ 100% of the selected current range in 1% steps
Guard Cell Potential	+ 2000 mV in 1 mV steps
Event Marker	Triggered by independent front panel keypad, rear panel contact closures, timed operation or RS-232C control, 5% of full scale
Autozero	Triggered by independent front panel keypad, rear panel contact closures, timed operating or RS-232C control
Function Keys	Autozero, Event Marker, Cell In/Out, Run/Stop
RS-232C Interface Capability	Full parametric instrument control
Method Storage	Up to 10 methods for each mode of operation
Operating Temperature	10 to 35°C
Humidity	40 to 80% RH (10-35°C)
Storage Temperature	-10 to 60°C

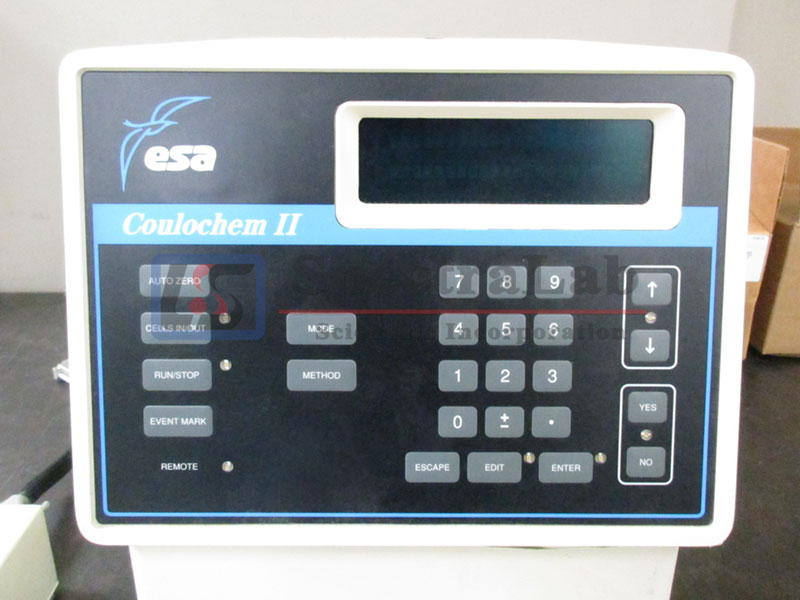

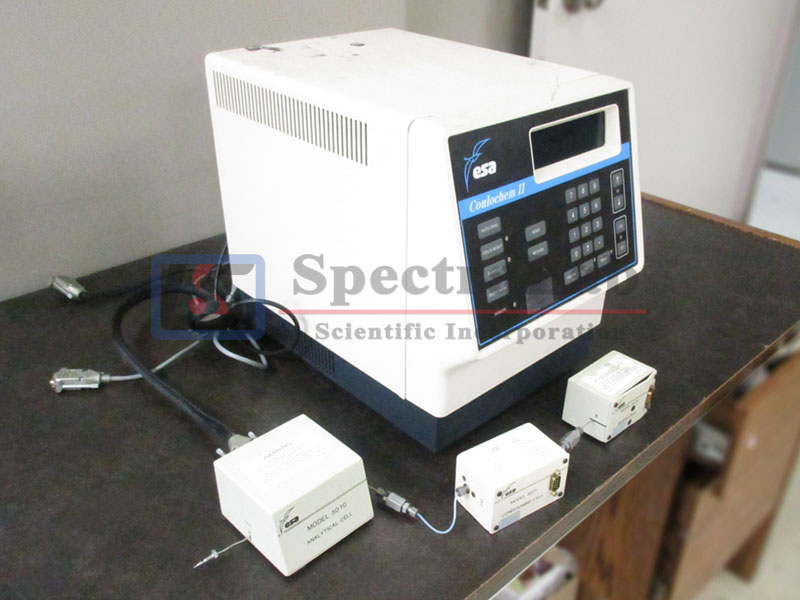

This ESA Coulochem II5200 Electrochemical Detector is in great condition. It has been plugged in, powered up and lights illuminate, but we did not do further testing for it.

Please feel free to contact our professional team members if you have any concern. Your satisfaction is our priority and we do appreciate your interest and look forward to serving you soon.
