Type |
Specification |
|
Detection type |
1024-element photodiode array |
|
Light source |
Deuterium and tungsten lamps |
|
Wavelength range |
190 – 950 nm |
|
Short term noise (ASTM) Single and Multi-Wavelength |
± 1 × 10-5AU at 254 and 750 nm |
|
Drift |
2 × 10-3AU/hr at 254 nm |
|
Linear absorbance Range |
> 2 AU (upper limit) |
|
Wavelength accuracy |
± 1 nm |
|
Wavelength bunching |
1 – 400 nm |
|
Slit width |
1, 2, 4 , 8, 16 nm |
|
Diode width |
< 1 nm |
|
Flow cells |
Standard: 13 µl volume, 10 mm cell path length and 120 bar (1760 psi) pressure maximum Semi-Micro: 5 µl volume, 6 mm cell path length and 120 bar (1760 psi) pressure maximum High pressure: 1.7 µl volume, 6 mm cell path length and 400 bar (5880 psi) pressure maximum 500 nano: 0.5 µl volume, 10 mm cell path length and 50 bar (725 psi) pressure maximum |
|
Control and data Evaluation |
Agilent ChemStation for LC |
|
Analog outputs |
Recorder/integrator: 100 mV or 1 V, output range 0.001 – 2 AU, two outputs |
|
Communications |
Controller-area network (CAN), GPIB, RS-232C, APG Remote: ready, start, stop and shut-down signals, LAN optional |
|
Safety and maintenance |
Extensive diagnostics, error detection and display (through control module and ChemStation), leak detection, safe leak handling, leak output signal for shutdown of pumping system. Low voltages in major maintenance areas. |
|
GLP features |
Early maintenance feedback (EMF) for continuous tracking of instrument usage in terms of lamp burn time with user-settable limits and feedback messages. Electronic records of maintenance and errors. Verification of wavelength accuracy with built-in holmium oxide filter |
|
Housing |
All materials recyclable. |

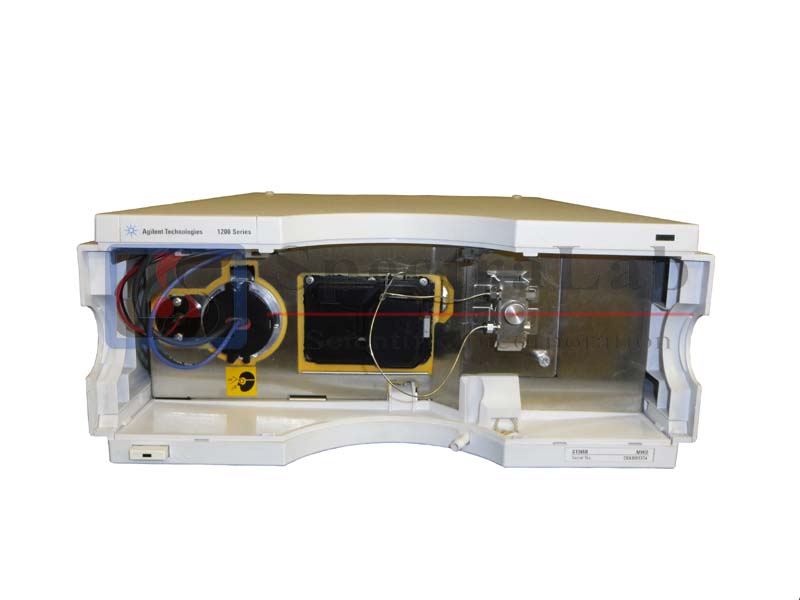

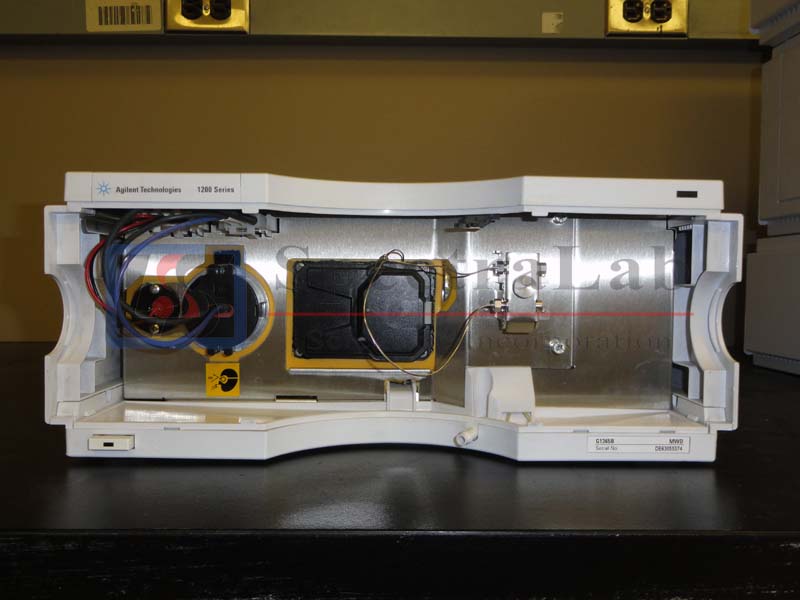

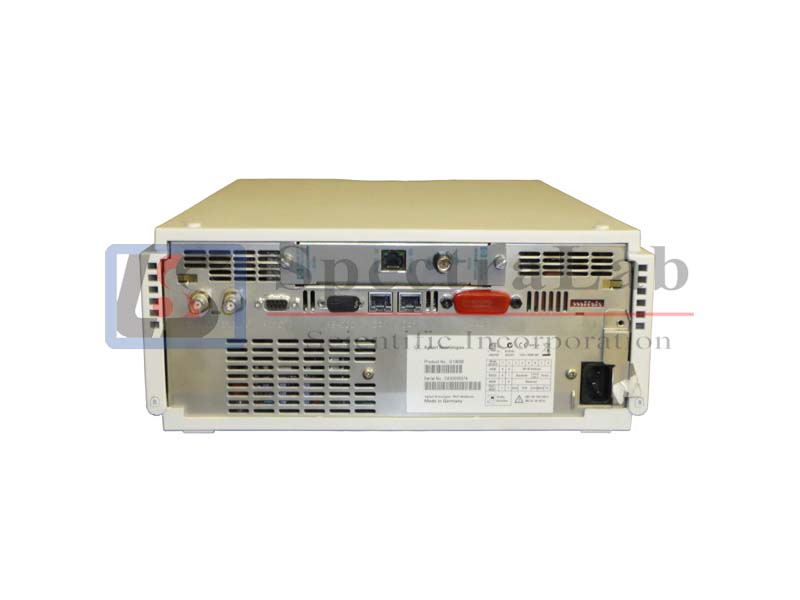

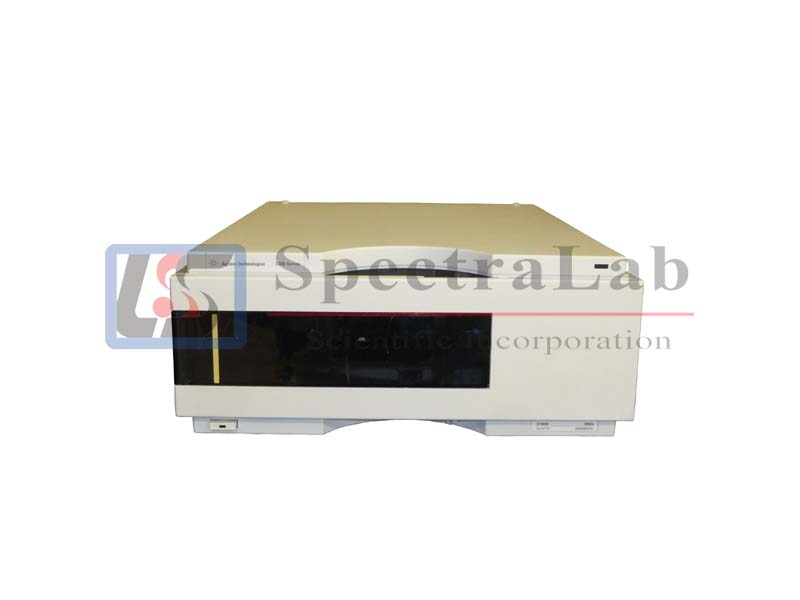

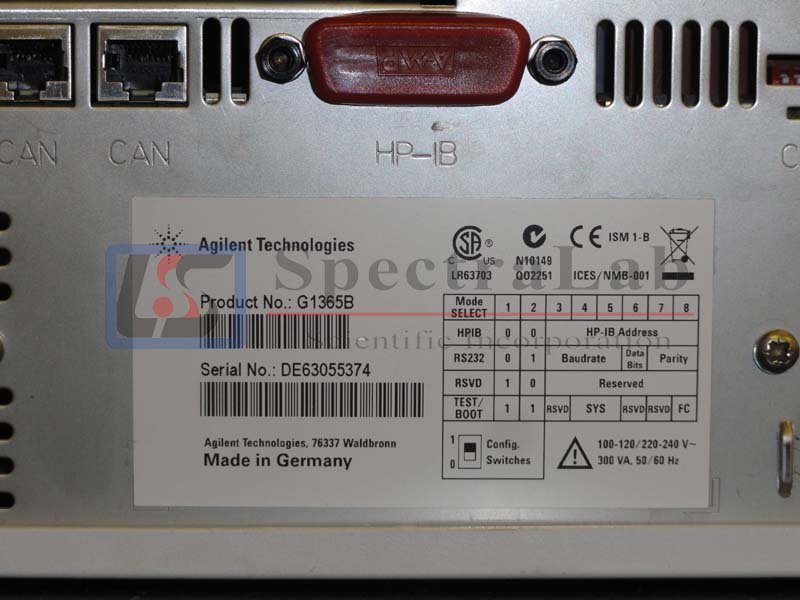

This Agilent 1200 Series G1365B MWD is in great shape. It has been tested at SpectraLab Scientific.
A 90-day warranty is included.
