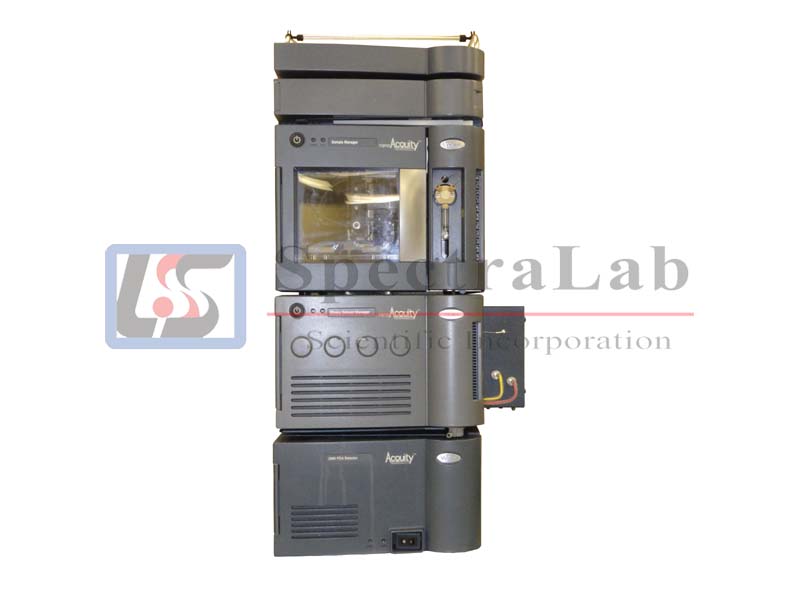

This Refurbished Waters NanoAcquity UPLC System with Waters ACQUITY 2996
PDA come with the following:

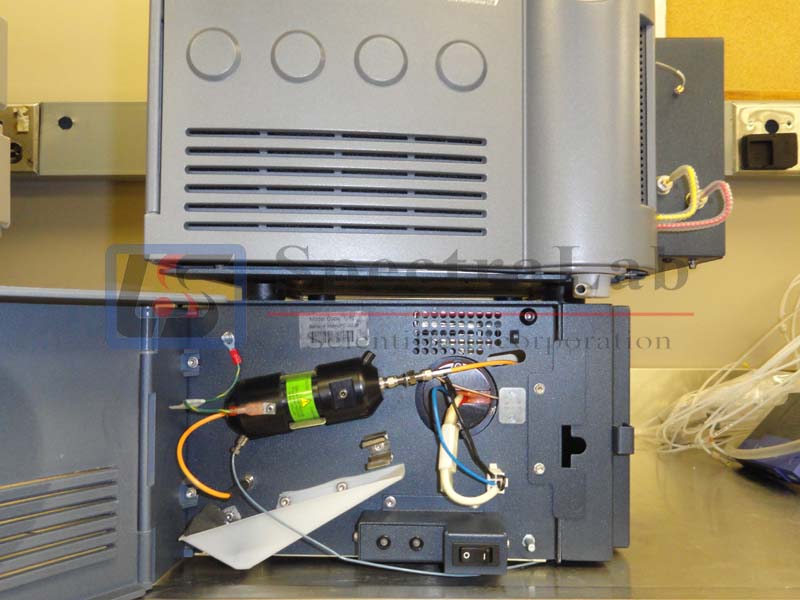

- Waters Acquity 2996 PDA with Nano scale flow cell installed

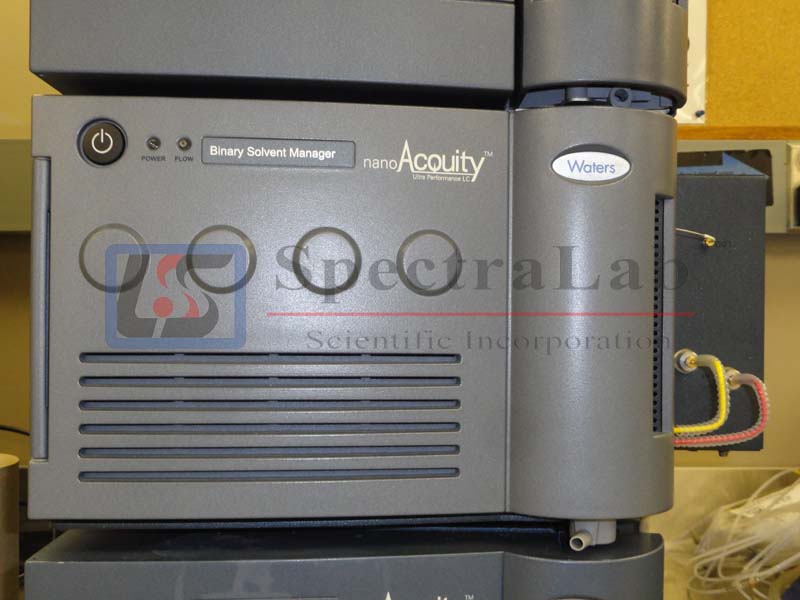

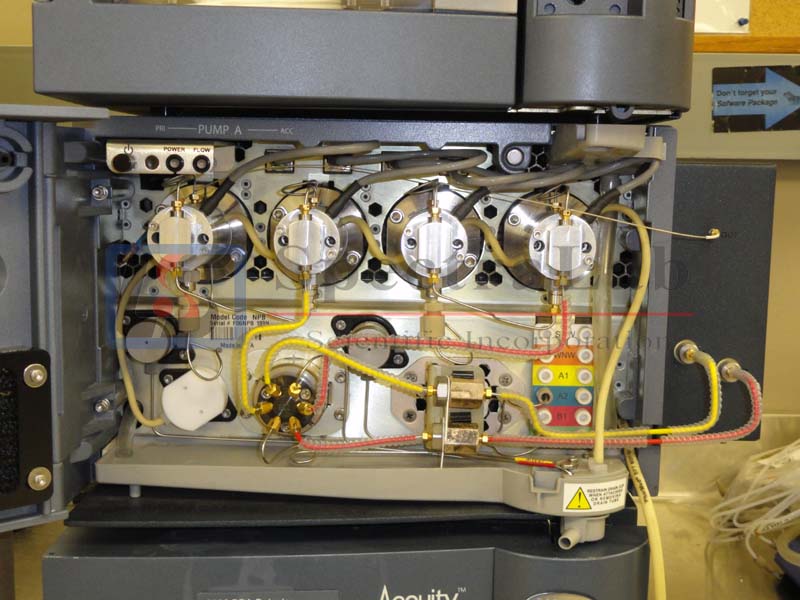

- Waters NanoAcquity Binary Solvent Mamager

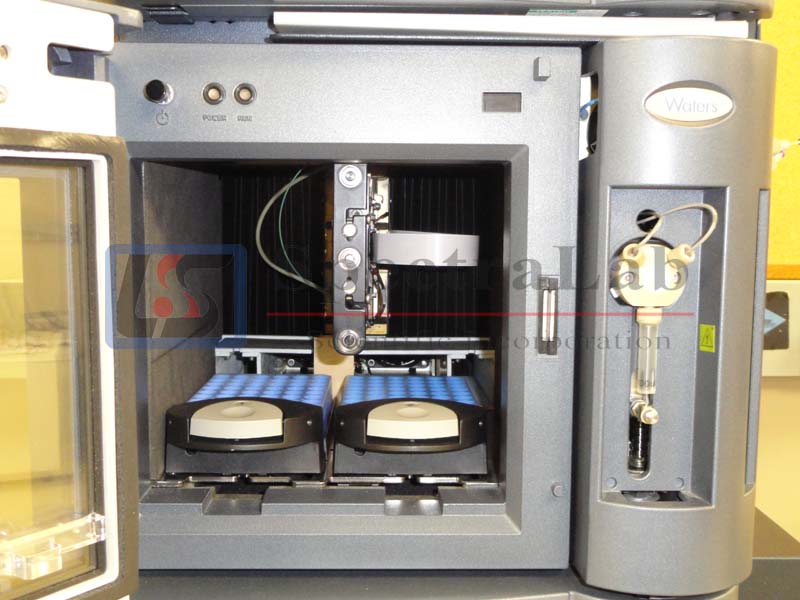

- Waters NanoAcquity Sample Manager with attached column oven
- Waters Sample Tray
- Essential cables for full operation
Maximum resolution – optimized system to drive 1.7 µm BEH particle technology to yield maximum peak capacity for complex mixtures.
Maximum reproducibility – direct nanoflow control and a novel, movable heating and trapping module for <0.25-minute standard deviation run-to-run reproducibility, even overlong gradients
Maximum throughput – BEH Technology columns enable faster gradient separations for simple mixtures, or when preforming targeted analyses without compromising resolution
Robustness – Nano-scale columns and fittings (PEEK, 1/32 stain-less steel and goal coating)provide reliable operation for up to 10,000 psi, with novel pressure trapping
Ease-of-use – Direct gradient control enables minimized tubing assembles and simplified loading and trapping schemes.
Enhanced on-board diagnostics – Efficiently monitor system performance
Combine with any MS – Control the NanoAcquity UPLC system from your Waters, Thermo Fisher Scientific,or ABI/MDS SCIEX mass spectrometer software platforms
UPLC and HPLC – Compatible with a wide range of conventional nano-scale columns with a flow range from 200 nL/min to 100 µL/min
Acquity 2996 PDA
| Item | Specification |
| Wavelength range | 190 to 800 nm |
| Light source | Prealigned, Deuterium lamp |
| Spectral Resolution/Optical Bandpass | 1.2 nm per photodiode with a total of 512 photodiodes, digital and optical (3D-mode) |
| Digital Resolution | 1.2 nm – 600 nm (2D mode) |
| Wavelength accuracy | ±1 nm |
| Linearity range | 5% at 2.0 AU, propylparaben, at 256 nm |
| Spectral resolution | 1.2 nm |
| Baseline noise | ±1.5 × 10–5 AU peak-to-peak, dry, at 254 nm |
| Drift | 1 × 10–3 AU/hour at 254 nm (after warm-up) ∆T ≤ 1°C per hour |
| Operation temperature | 4 to 40 °C (39 to 104 °F), not to vary more than 1 °C per hour (to prevent drift) |
| Relative humidity | 20 to 80%, noncondensing |
| Power | Grounded ac, 100 to 240 Vac |
| Power requirements | 100-230 VAC |
| Frequency range | 50 to 60 Hz |
| Path Length | 10 mm (standard analytical cell) |
| Cell volume | 8 µl (standard analytical cell) |
| Pressure Limit | 1000 psi (standard analytical cell) |
| Wetted materials | 316 stainless steel, fused silica Tefzel |
| Dimensions | Width: 11.5 in. (29 cm) Depth: 24 in. (61 cm) Height: 8.5 in. (22 cm) |
| Weight | 31.5 lbs (14.3 kg) |
This Waters NanoAcquity UPLC with ACQUITY 2996 PDA is in good condition.
A 90 day warranty is included.
