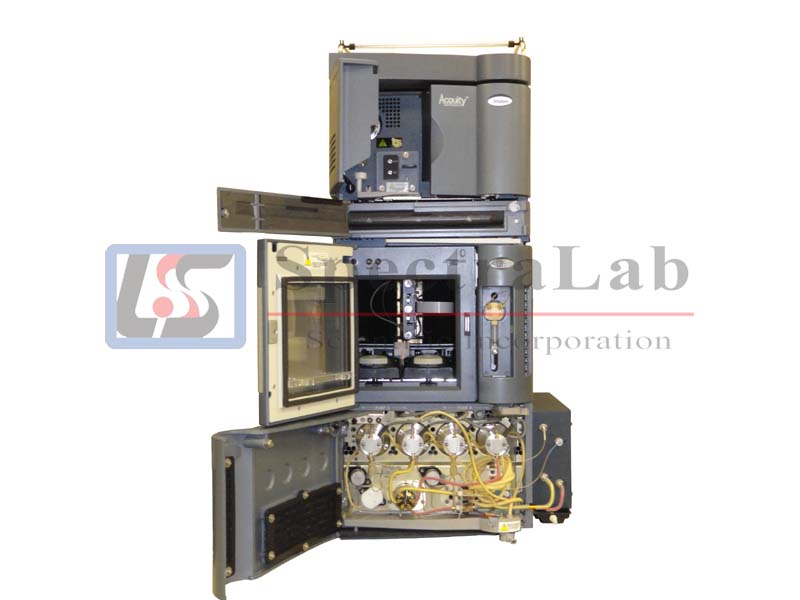

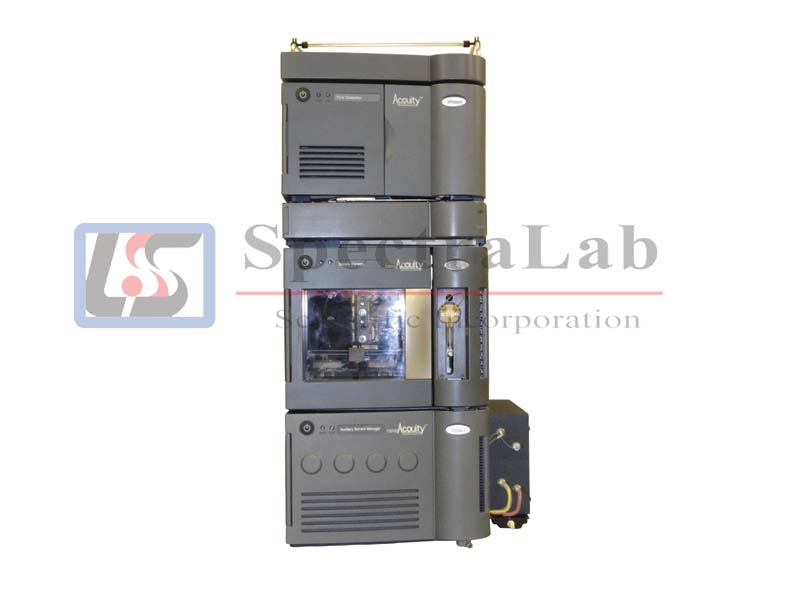

This refurbished Waters NanoAcquity UPLC System with Waters ACQUITY TUV includes the following:

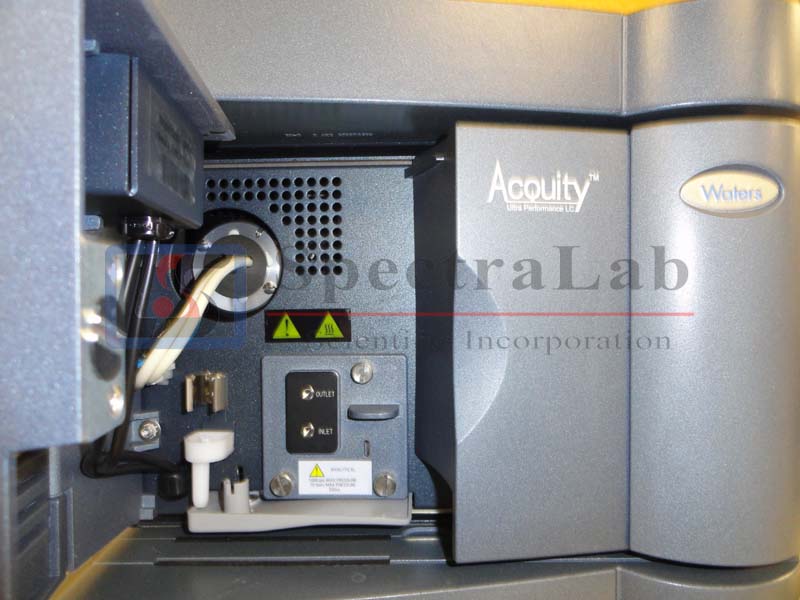

- TUV Detector

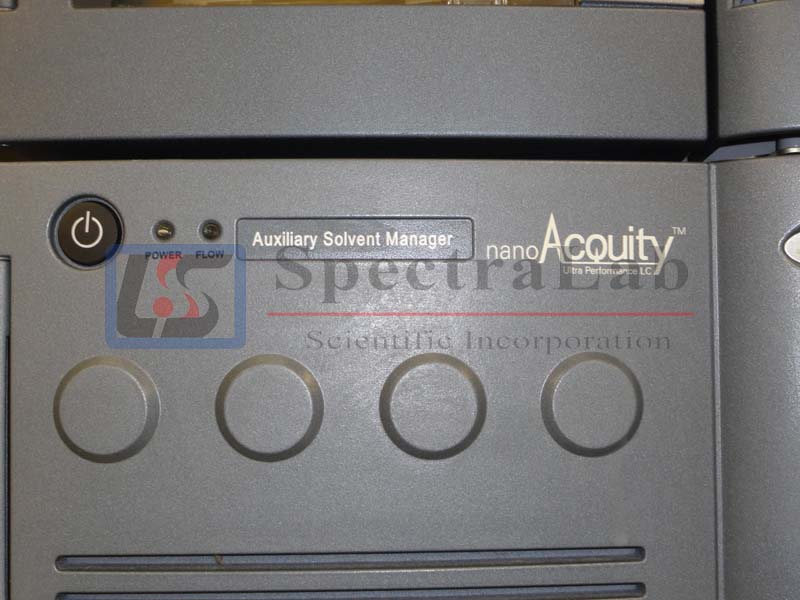

- Auxiliary Solvent Manager

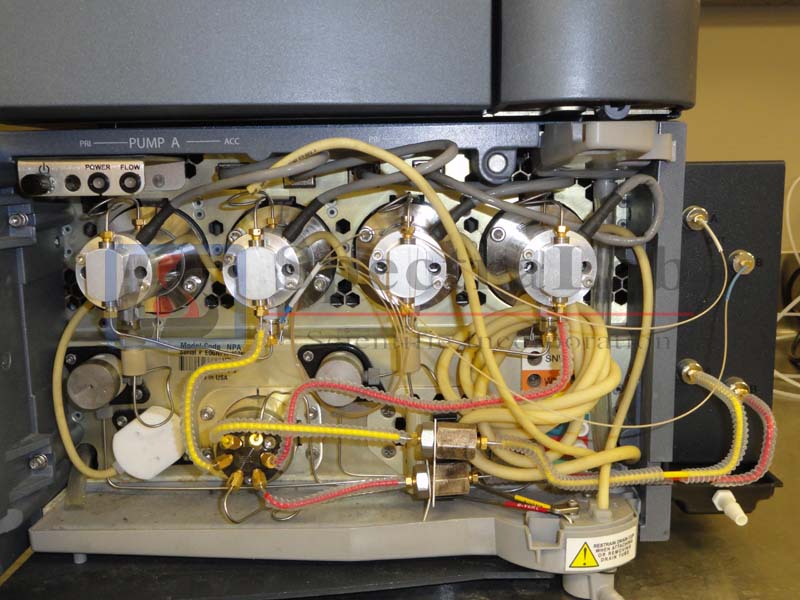

- Binary Solvent Manager

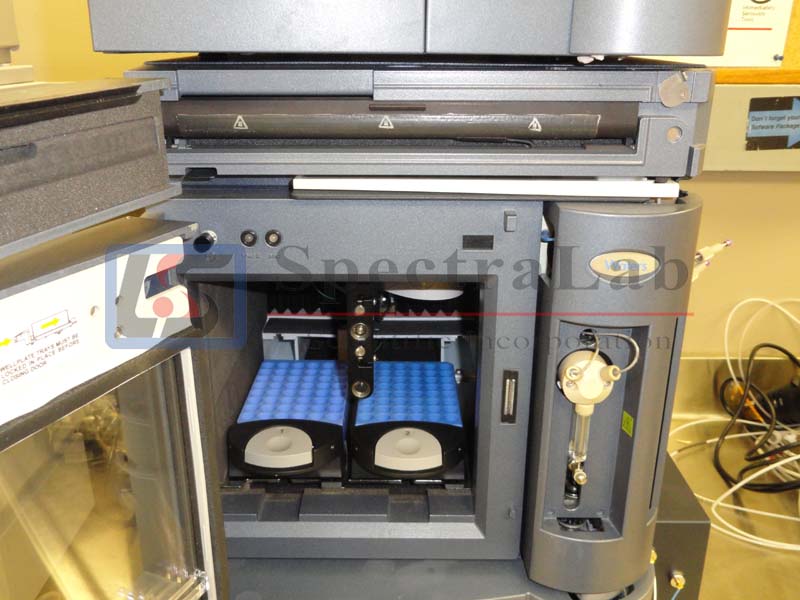

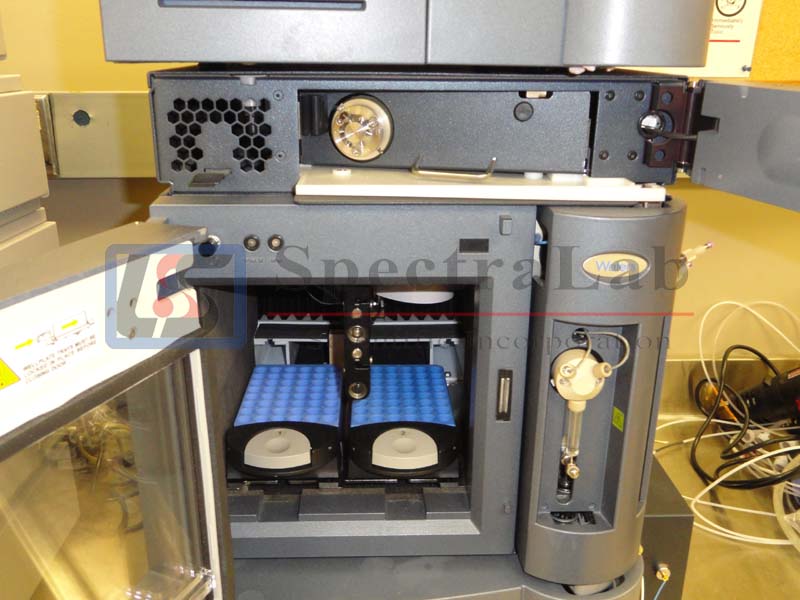

- Sample Manager with column oven
- Waters Sample Tray
- Necessary cables for full operation
Maximum resolution – optimized system to drive 1.7 µm BEH particle technology to yield maximum peak capacity for complex mixtures.
Maximum reproducibility – direct nanoflow control and a novel, movable heating and trapping module for <0.25-minute standard deviation run-to-run reproducibility,even overlong gradients.
Maximum throughput – BEH Technology columns enable faster gradient separations for simple mixtures, or when preforming targeted analyses without compromising resolution.
Robustness – Nano-scale columns and fittings (PEEK, 1/32 stain-less steel and goal coating)provide reliable operation for up to 10,000 psi, with novel pressure trapping.
Ease-of-use – Direct gradient control enables minimized tubing assembles and simplified loading and trapping schemes.
Enhanced on-board diagnostics – Efficiently monitor system performance.
Combine with any MS – Control the NanoAcquity UPLC system from your Waters, Thermo Fisher Scientific,or ABI/MDS SCIEX mass spectrometer software platforms.
UPLC and HPLC – Compatible with a wide range of conventional nano-scale columns with a flow range from 200 nL/min to 100 µL/min.
| Wavelength range | 190 to 700 nm |
| Wavelength accuracy | +1 nm (via patented2 Erbium filter) |
| Linearity range | Deviation at 2.5 AU <5%, propylparaben, at 257 nm |
| Baseline noise | 6.0×10-6 AU, at 230 nm, 10 mm shunt cell, 1.0 second filter time constant |
| Drift | <5.0×10-4 AU/hour/°C at 230 nm |
| Sampling rate | Up to 80 points/s |
| Unattended operation | Leak sensors, full diagnostic data captured through console software |
| Light source | Prealigned, intelligent technology Deuterium lamp (Warranty for one year or 2000 hrs, whichever comes first) |
| Flow cell design | Light guiding UPLC flow cell with intelligent chip technology |
| Path length | 10 mm (analytical flow cell) |
| Cell volume | 500 nL (analytical flow cell) |
| Pressure limit | 1000 psi (all flow cells) |
| Wetted materials | 316 stainless steel, fused silica, Teflon,AF,PEEK |
| Optical bandwidth | 5 nm |
This Waters NanoAcquity UPLC with ACQUITY TUV Detector is in good condition.
A 90 day warranty is included.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
