The Agilent 1260 Infinity Micro Vacuum Degasser comprises of a 4-channel vacuum container, including 4 micro structured membranes, and a vacuum pump. When the micro vacuum degasser is switched on, the control circuit turns on the vacuum pump, which is operated with constant speed and voltage generates a partial vacuum in the vacuum container. The pressure is measured by a pressure sensor. The micro vacuum degasser maintains the partial vacuum with the help of a controlled leak in the degasser’s proportional valve and by varying size of the controller leak within the proportional valve, depending on the signal from the pressure sensor.
The LC pump draws the solvents from their bottles through the special plastic membranes of the vacuum container. As the solvents pass through the vacuum chambers, any dissolved gas in the solvents permeates through the membranes into the vacuum container. The solvents will be almost completely degassed when leaving the outlets of the micro vacuum degasser.

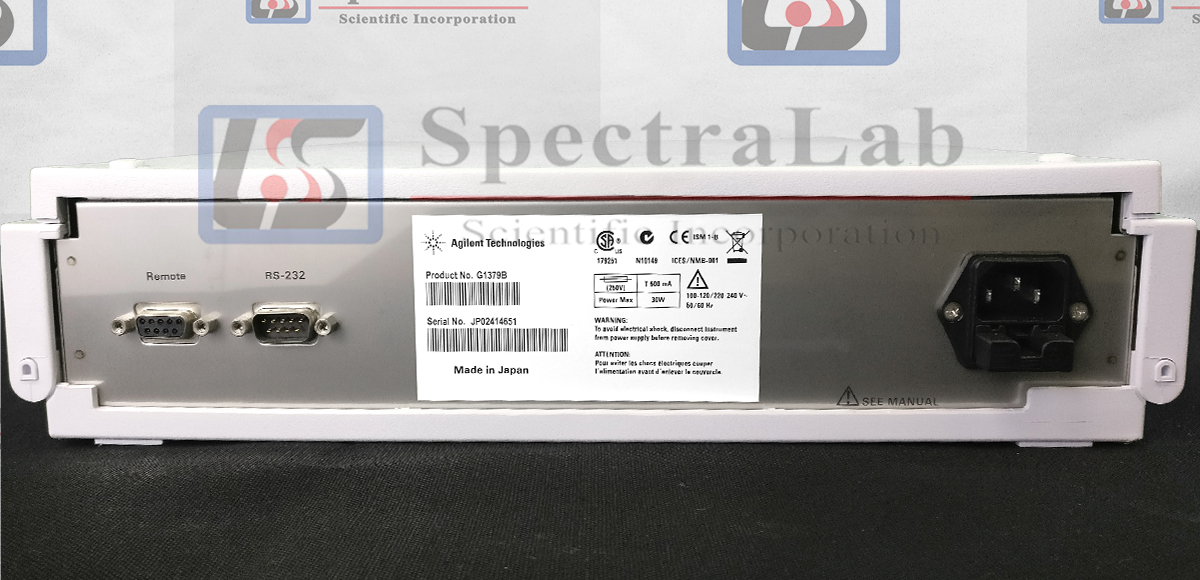

S/N: JP02414651
Specifications:
| Type | Specifications |
|---|---|
| Maximum flow rate | 0-5 ml/min per channel |
| Number of channels | 4 |
| Internal Volume per channel | Typically 1ml/ channel |
| Materials in contact with solvent | PTFE, FEP, PEEK |
| pH range | 1- 14 |
| RS- 242 output | For diagnostic purposes |
