If you need a FT-IR spectrometer that can rapidly identify, quantify and verify your routine samples, TENSOR is the right tool for you.
The Hyperion is a high performance infrared microscope with transmission, refelection, Grazing incidence, and Attenuated Total Reflectance (ATR) acquisition modes. Spectral acquisition area can range from ~250 µm² to as small as ~10 µm². Motorized sample stage enables spectral mapping, though signal strengths are reduced as spatial resolution is increased. Spectral mapping allows investigation of spatially resolved gradients and distribution of chemical species across a surface. Transmission is the standard mode of acquisition though samples need to be sufficiently thin (<50 µm) to allow good signal to noise.
Specifications
- Spectral range: ~600 – 10,000 cm-¹
- Resolution: 0.9 cm-¹
- Wave number accuracy: 0.019 cm-¹ at 2,000 cm-¹
- Measured area, Optimized for diameter of 250 µm, minimum diameter of 20 µm with standard objective
- Diameter of ATR Crystal tip 100 µm
- Refractive index of ATR Crystal: 4, sample must have a refractive index that is < ATR crystal
- Measurements in transmittance mode are suitable for very thin specimens (<50 µm)

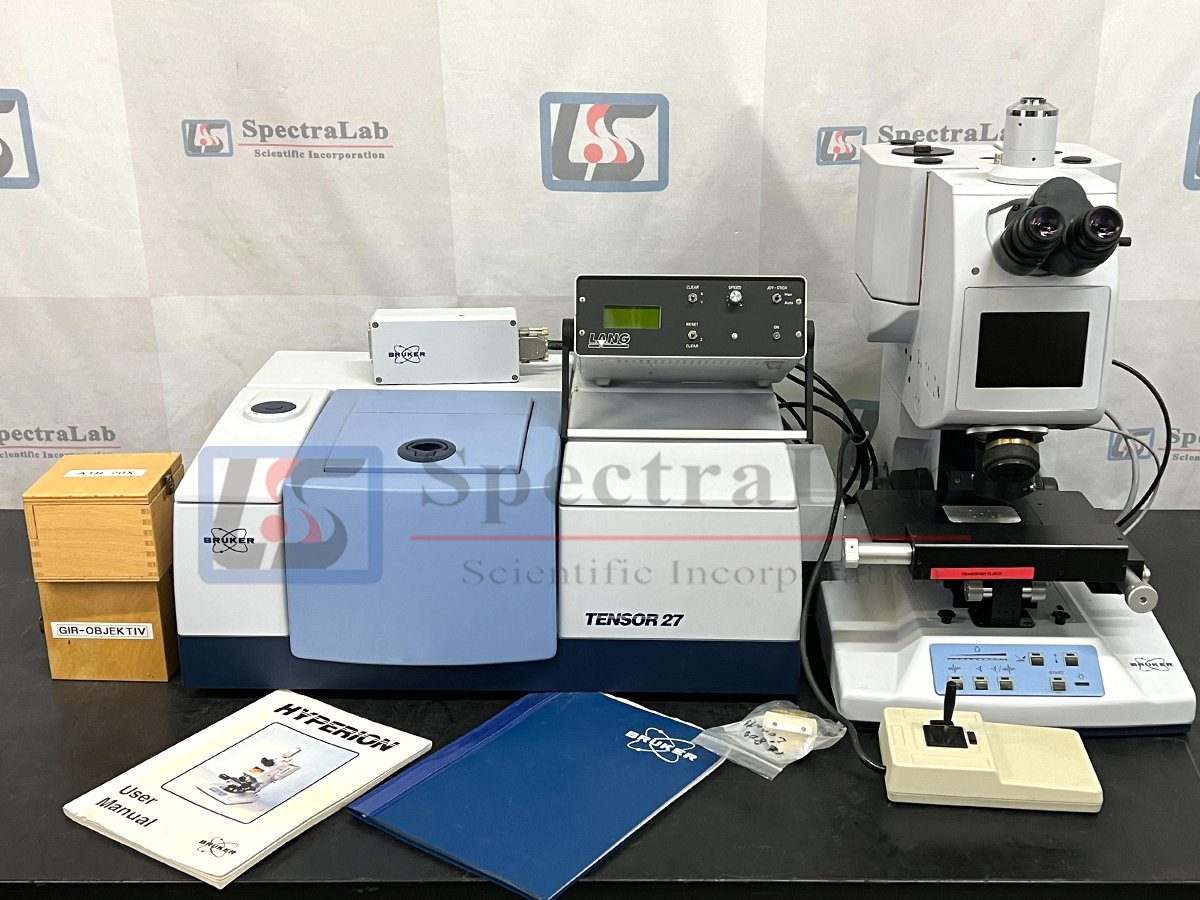

Includes:
- Bruker Tensor 27 FT-IR Spectrometer

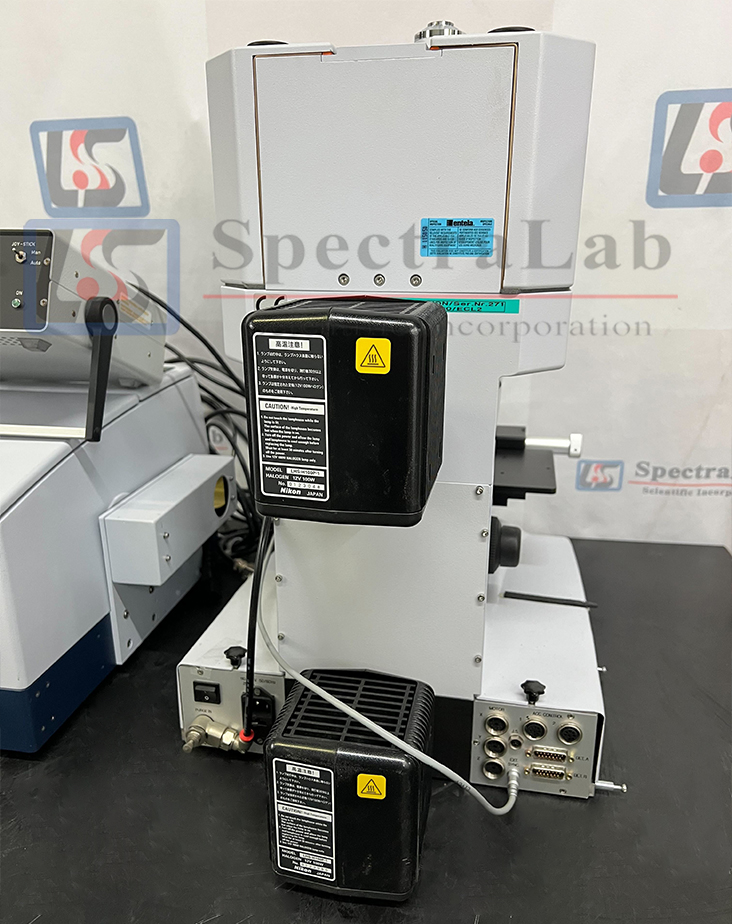

- Bruker Hyperion 2000-IR Microscope
- Lang GmbH MCL-2 Microscope Stepping Motor Control with Joystick
- Bruker I23070 ExtAnaB ECL 01 JPK Detector Module
- Bruker Hyperion 15x GIR objective lens
- Bruker Hyperion 20x ATR objective lens
