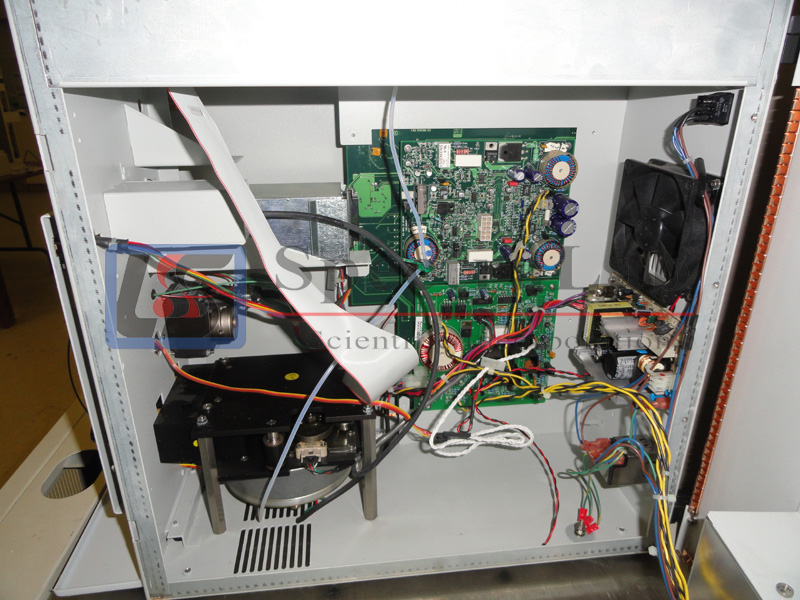

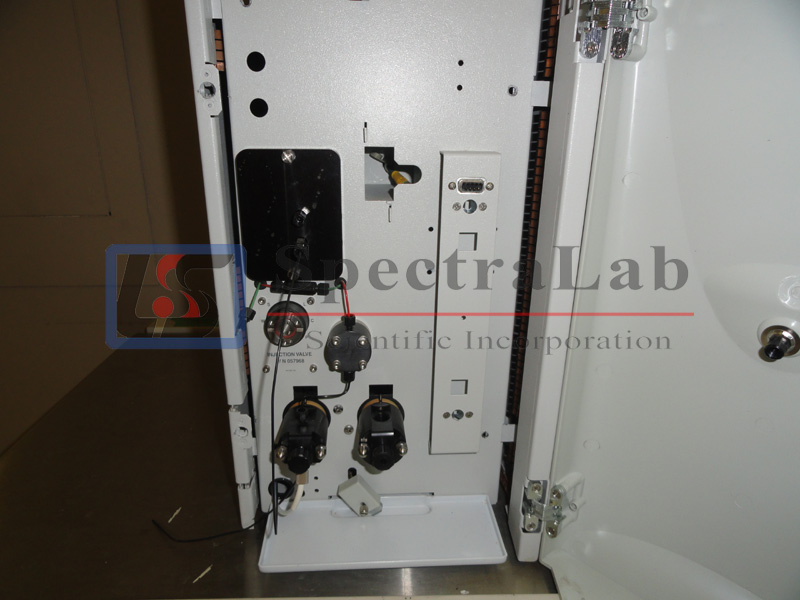

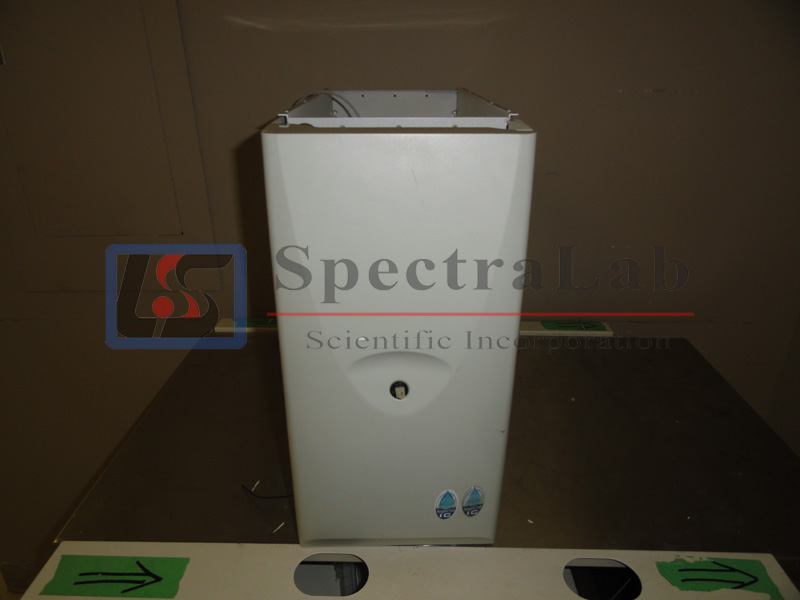

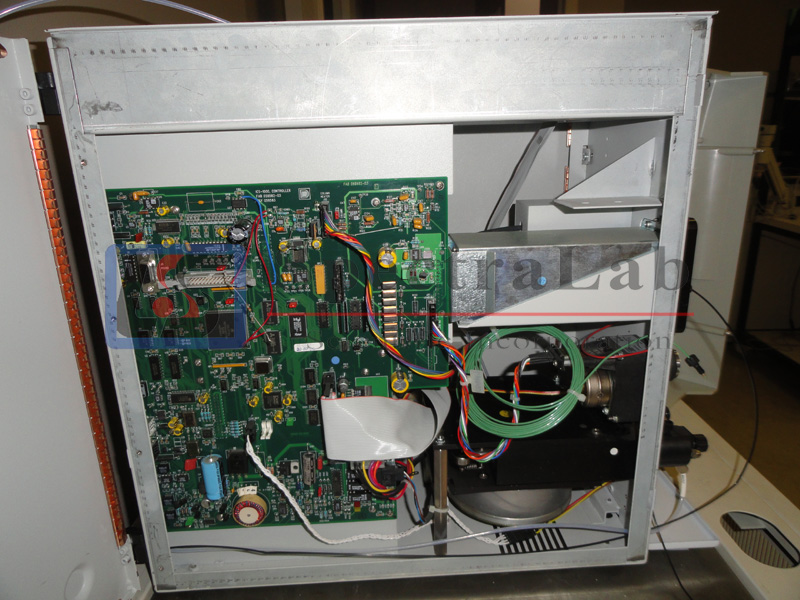

This Dionex ICS-2000 Ion Chromatography System is good for parts or repair.
This items is sold as is without warranty.
We are seasoned professionals in this area and we would be happy to have you speak with one of our experts here at SpectraLab.
Thanks for looking and we look forward to hearing from you!
Pump:
| Specification | |
| Type | Dual-piston (in series), variable speed, 100 µL per revolution |
| Flow Rate | Settable range: 0.00 to 5.00 mL/min (without eluent generator) 0.10 to 3.00 mL/min (with eluent generator), in 0.01 increments Optimal Operational Range: 0.40 to 2.0 mL/min |
| Flow Accuracy | <1% of set value within the optimal operational range |
| Flow precision | <0.2% |
| Operating Pressure | 35 MPa (5000 psi), maximum |
| High Pressure Limit |
0.7 to 34.4 Mpa (100 to 5000 psi) (without eluent generator) 2.1 to 20.6 MPa (300 to 3000 psi) (with eluent generator) |
| Low Pressure Limit |
0.0 to 33.7 Mpa (100 to 5000 psi) (without eluent generator) 1.4 to 19.9 MPa (300 to 3000 psi) (with eluent generator) |
| Delay Volume | <800 µL |
| Pressure Ripple | <1% at 13.8 MPa (2000 psi) and 1.0 mL/min |
Detector:
| Specification | |
| Range | 0 to 15000 µS (digital output) |
| Temperature Compensation | 1.7% per °C |
| Cell Drive | 8 kH square wave |
| Linearity |
Correlation >0.999 %RSD <5% to 800 µS |
Conductivity:
| Specification | |
| Cell Body | PEEK |
| Electrodes | Passivated 316 stainless steel |
| Active Volume | 1.0 µL |
| Operating Temperature | 30 to 55°C (86 to 130°F); must be least 7°C above the ambient temperature |
| Maximum Pressure | 2 MPa (300 psi) |
