Collect full spectral data for postacquisition analysis with the Dionex UltiMate 3000 Photodiode Array Detector. It supports both HPLC and UHPLC applications with eight channels of single-wavelength data acquisition, a 1024-element diode array, and the excellent noise and drift performance of a forward-optic detector. Diode array detection allows full spectrum acquisition at speeds up to 200Hz. Comprehensive three-dimensional data tools in Dionex Chromeleon Chromatography Data System software makes it easy to process and report your results.
Specifications:
| Optical System | Single-beam, reverse-optics design with concave holographic grating |
| Photodiode Array | 1024-element |
| Lamps | Deuterium lamp (30 W) for ultraviolet spectrum analysis Tungsten lamp (15 W) for visible spectrum analysis |
| Spectral Resolution | 1 nm |
| Pixel Resolution | 0.7 nm |
| Wavelength Range | 190 to 800 nm |
| Wavelength Accuracy | ±1 nm, self-calibration with deuterium lines, verification with built-in holmium oxide filter |
| Noise with Analytical or Semipreparative Cell Installed | <± 10 µAU at 254 nm, 2-second rise time, 4 nm; bandwidth and flowing water at 1.0 mL/min <± 15 µAU at 520 nm, 2-second rise time, 10 nm; bandwidth and flowing water at 1.0 mL/min |
| Drift | <1 mAU/h at 254 nm and 520 nm, and flowing water (after warm-up); typically < 500 µAU/h |
| Absorbance Range | ?2.7 (wavelength dependent) to 3.5 AU |
| Linearity | Corr. Coeff. > 99.95 and < 3% RSD up to 1.5 AU; Typical Corr. Coeff. > 99.99 and < 2.5% RSD up to 1.8 AU |
| Power Requirements | 85 to 265 VAC, 47 to 63 Hz auto-sensing; no adjustment necessary); Typical input power 100 W; Maximum line draw 3.5 A at 110 VAC at power-up |
| Dimensions (h × w × d) | 19 × 42 × 51 cm |
| Control | All parameters and functions controlled by Chromeleon software; Chromeleon PC and detector connected via USB (Universal Serial Bus); 4 LEDs (Power, Run, Deuterium, Tungsten) for status monitoring |
| Weight | 19 kg |
| Decibel Level | <50 dbA during routine operation 56 dbA at power-up |

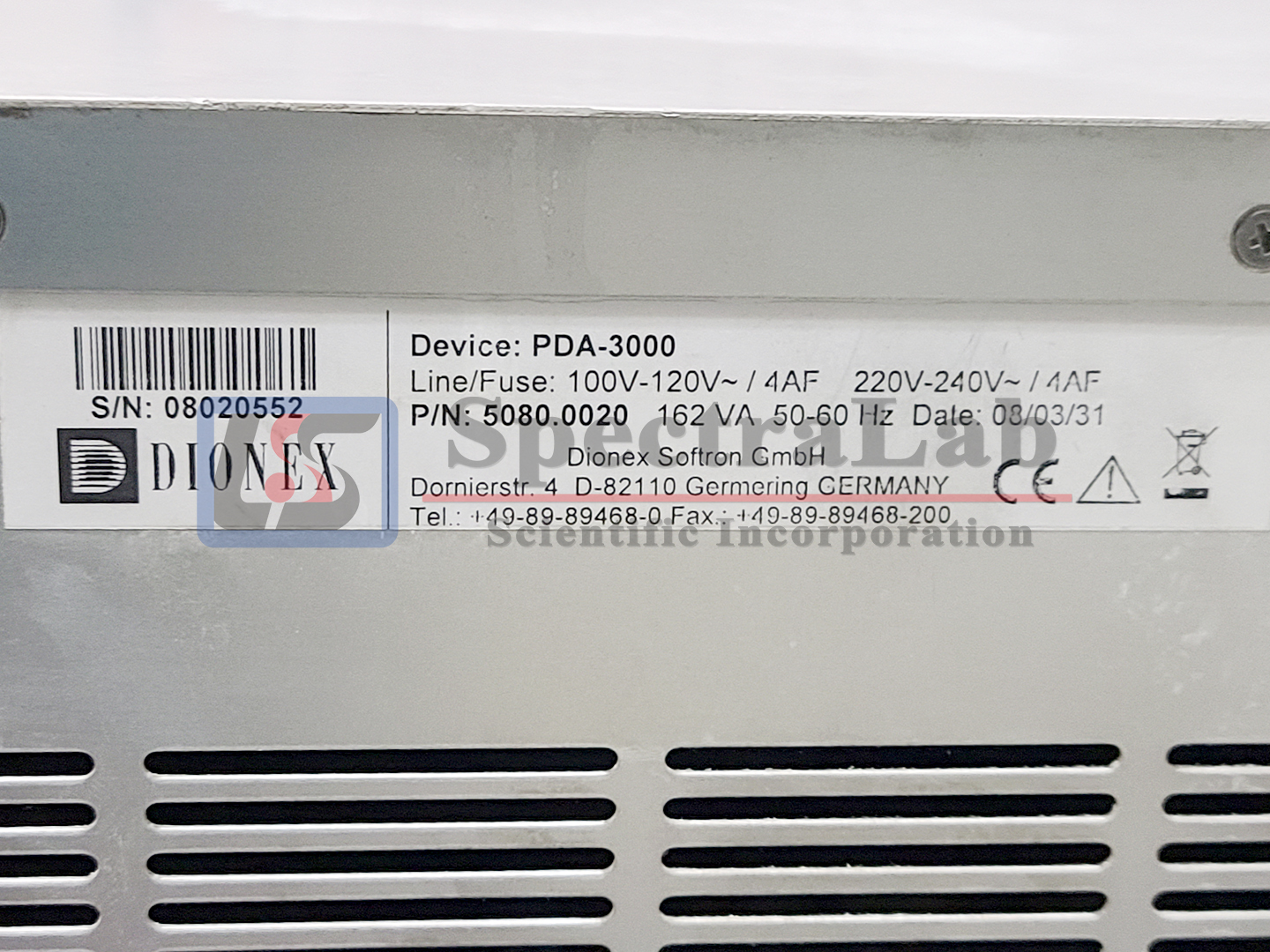

This Dionex Ultimate 3000 Photodiode Array Detector PDA-3000 is in good condition. It has been tested here at Spectralab Scientific. A 90-day warranty is included.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members. Thanks for looking and we look forward to hearing from you!
