The flow manager is a reliable module of the Thermo Fisher/ Dionex UltiMate 3000 system and performs equally well as a dependable system for routine analyses or as a sophisticated research instrument for nano, capillary, and micro HPLC applications. The design has been optimized for minimum dead volume and maximum efficiency.
Specifications
| Type | Specifications |
|---|---|
| Temperature range | 5–70 °C (max. 15 °C below ambient) |
| Temperature accuracy | ±0.5 °C |
| Temperature stability | ±0.1 °C |
| Temperature precision | ±0.1 °C |
| Column capacity | Up to 3 columns, max. 30-cm length |
| Heatup time | From 20 to 50 °C in less than 25 min (at 23 °C ambient temperature, ±0.5 °C) |
| Cooldown time | From 50 to 20 °C in less than 35 min (at 23 °C ambient temperature, ±0.5 °C) |
| Control | All functions software controlled via USB 1.1 |

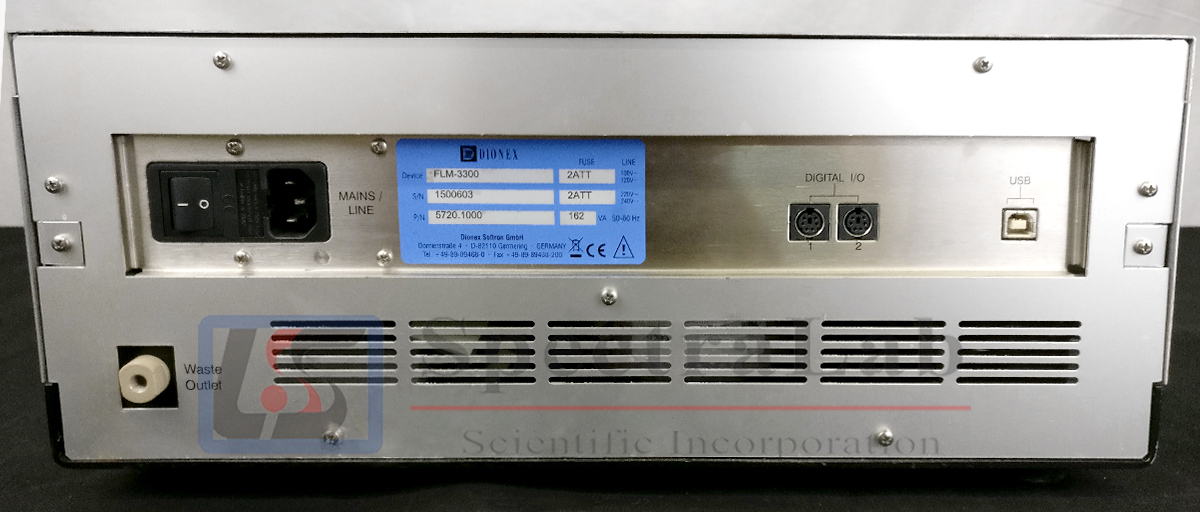

| I/O interfaces | 2 digital inputs, 2 programmable relay outputs |
| Column recognition | Electronic identification system for 3 columns |

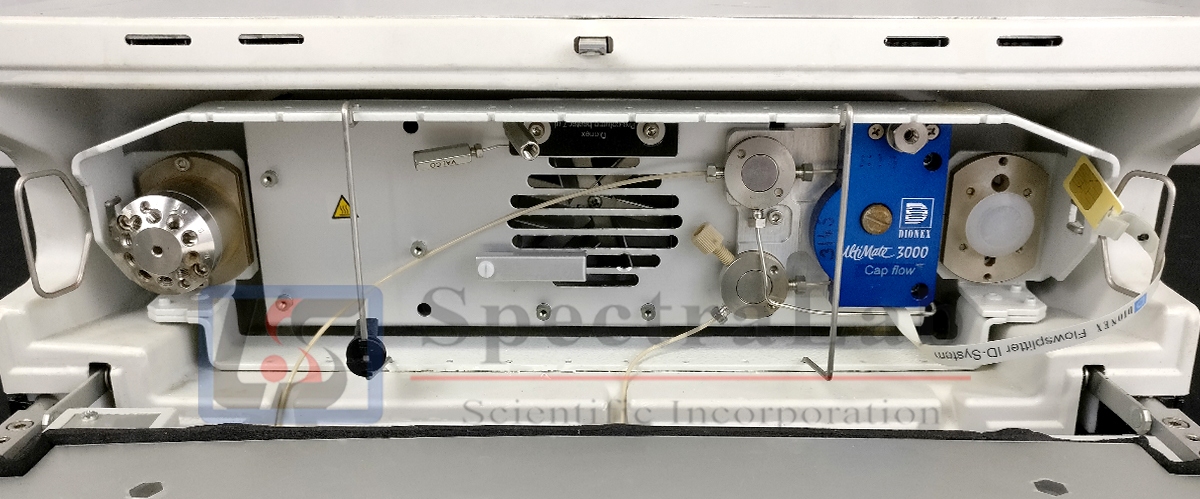

| Switching valves | 1 or 2 low-dispersion thermostatted micro valves (10 ports or 6 ports) |
| Flow splitter | Nano, capillary, or micro thermostatted splitter with splitter identification system |
| Flow control | Electronically controlled and actively balanced flow splitter, independent from solvent composition and backpressure |
| Column flow range | 50 nL/min to 2.5 mL/min using predefined splitter and active flow control |
| Flow range selection | 50 nL/min to 1000nl/min (using a nano LC splitter) 0.5 μL/min to 10 μL/min (using a capillary LC splitter) 10 μL/min to 160 μL/min (using a micro LC splitter) |
| Gradient delay time | Typically < 1.5 min at 200 nL/min to splitter outlet |
| Max. column pressure | 35 MPa (4900 psi) |
| Wetted parts | Fused Silica, stainless steel (1.4571, 316L), PEEK; Waste line: PTFE, aluminum oxide (Al2O3) |
| Safety features | Humidity sensor, gas sensor, and leak sensor for the flow control valve |

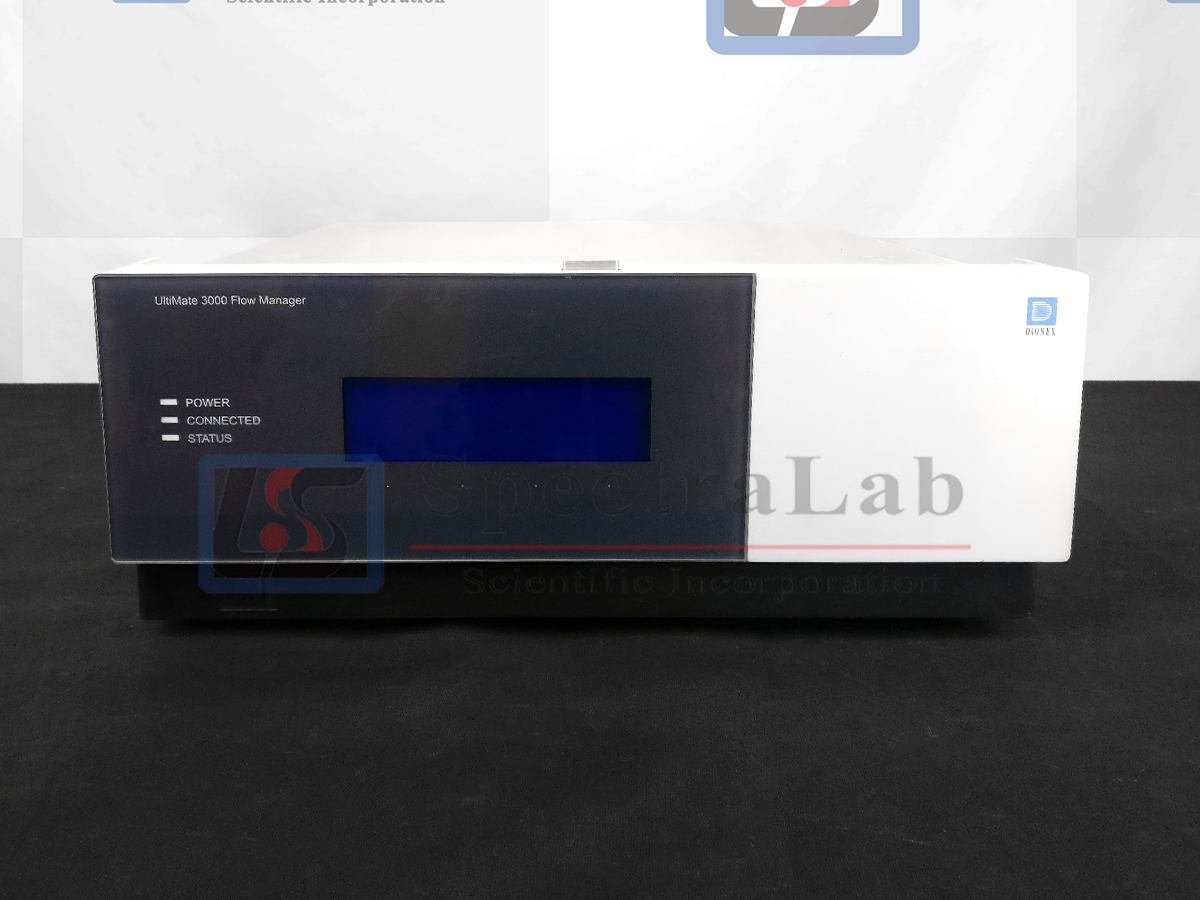

| User input/display | LCD indicating system parameters Standby button 3 LEDs for status monitoring (Power, Connected, Status) 4 soft keys for operation during initial installation and maintenance |
| GLP features | In Chromeleon: Full support of automatic equipment qualification (AutoQ) and System Wellness monitoring All system parameters are recorded in the Chromeleon audit trail. |
| Power requirements | 162 VA Automatic voltage selection |
| Environmental conditions | Range of use: Indoor use Temperature: 10 to 35 °C (50 °F to 95 °F) Air humidity: 80% relative humidity, non-condensing Overvoltage category: II Polution degree: 2 |
| Dimensions (h × w × d) | 17 x 42 x 51 cm |
