Specifications |
|
Wavelength Range |
200–595 nm, programmable |
Noise |
< ± 5 µAU (dry cell, 254 nm,8 nm, 1 s) |
Drift |
< 500 µAU/h |
Wavelength Accuracy |
± 0.75 nm (UV), ± 1.5 nm (Vis) |
Bandwidth |
1.9–400 nm, programmable |
Linearity |
≤1% at 1.5 AU |
Measuring Range |
0–2 AU |
Time Constant |
0.1–4.0 s, programmable |
Power-up Wavelength Verification |
Automatic via internal holmiumoxide filter |
Wavelength Calibration |
Automatic or on demand; over the entire wavelength range |
Optical Bench |
Photodiode array bench withoutmoving parts |
Pixel Resolution |
1.9 nm (UV), 3.3 nm (Vis) |
Lamp |
Deuterium Lamp |
Standard Cell |
10 µL, 9 mm, 10 MPa (1450 psi) |
Biocompatible Cell (optional) |
10 µL, 9 mm, 10 MPa (1450 psi) |
Preparative Cell (optional) |
6 µL, 2 mm, 10 MPa (1450 psi) |
Micro Capillary Cell (optional) |
0.14 µL, 8 mm, 40 MPa (5800 psi) |

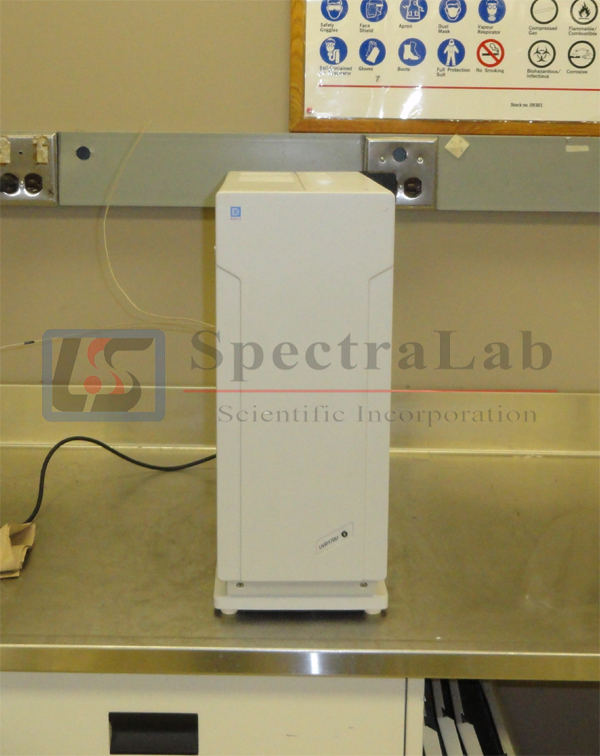

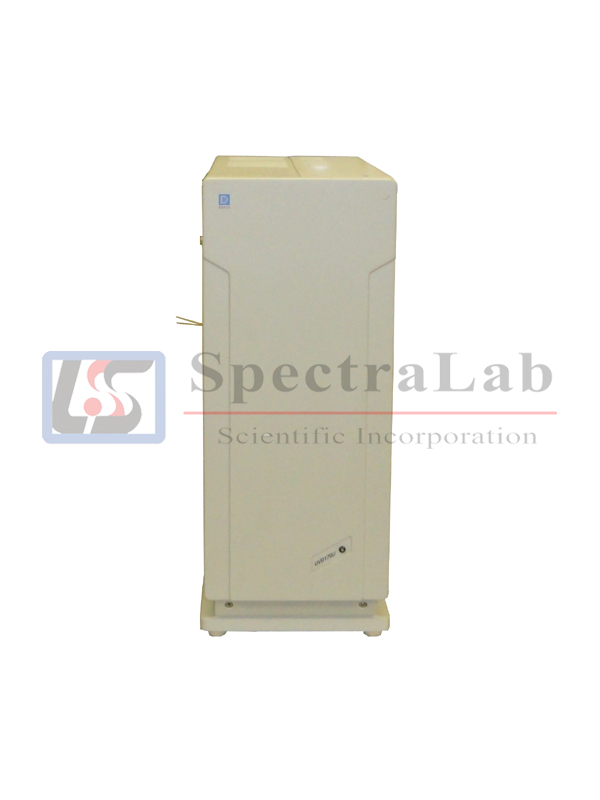

This refurbished Dionex UVD 170U UV/VISDetector is in great condition. It has been tested at SpectraLabScientific.
A 90 day warranty is included.
We are seasoned professionals in this area and we would be happy to have youspeak with one of our experts here at SpectraLab.
Thanks for looking and we look forward to hearing from you!
