Specification | |
Optics | Single beam principle with simultaneous measurement across the photodiode array |
Light source | Deuterium lamp |
Wavelength range | 200nm – 344nm (UV-range)
345nm – 595nm (VIS-range) |
Pixel bandwidth | 1.9nm (UV-range)
3.3nm (VIS-range) |
Wavelength accuracy | ± 0.75nm (UV-range)
± 1.5nm (VIS-range) |
Noise | < ± 0.8 x 10-5AU, after 3h warm-up at 254nm,
time step 1sec., empty flow cell |
Drift | < 5 x 10-4AU/h, after 3h warm-up at 254nm,
empty flow cell |
Flow cell volume | Standard flow cell: 10µl, 9mm path
Standard flow cell/PEEK capillaries: 10µl, 9mm path Preparative flow cell: 6µl, 2mm path Micro capillary flow cell: 0.14µl, 8mm path |
Flow cell pressure rating | Standard flow cell: 100bar (10,000kPa)
Standard flow cell/PEEK cap. 100bar (10,000kPa) Preparative flow cell: 100bar (10,000kPa) Micro capillary flow cell: 400bar (40,000kPa) |
Measuring range | 0AU to 2AU |
Time constant | 0.1sec |
PC-connection | Proprietary cable |
Data channels (UVD 170S) | 4 (+3D-field with or CHROMELEONTM control option) |

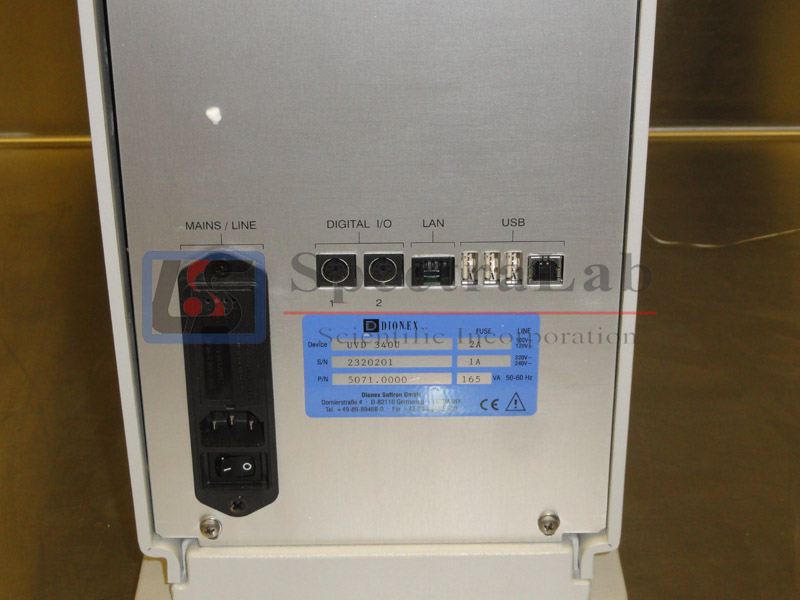

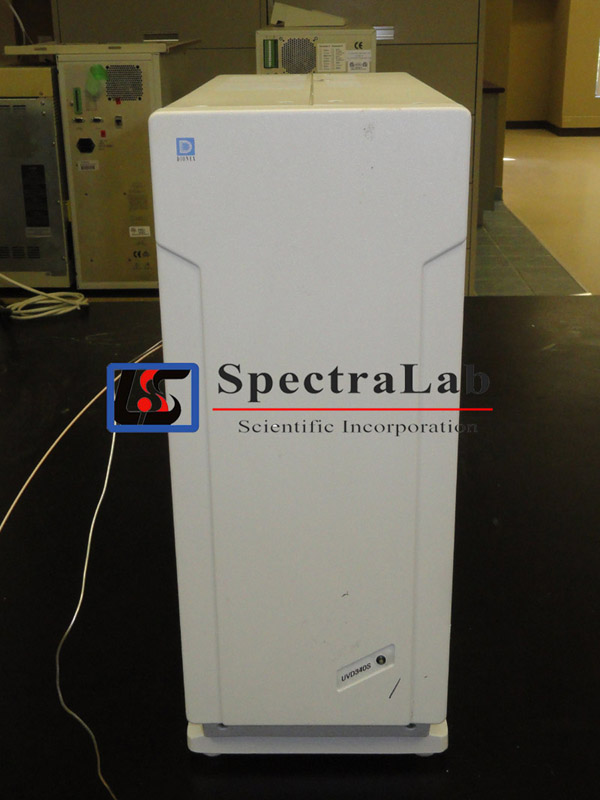

This Dionex UVD 340S UV/VIS Detector is in great condition.It has been tested at SpectraLab Scientific.
A 90 day warranty is provided.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
