Specification |
|
Photometric system: |
Flat field type polychromator with concave grating |
Wavelength range: |
200 – 600 nm, settable in 1 nm increment |
Wavelength accuracy: |
±7 nm |
Light source: |
Deuterium lamp |
Photometric method: |
Single beam photometry |
Detector: |
36 elements photodiode |
Noise level: |
±1.0×10-5 ABU at 250 nm with empty cell (based on ASTM method) |
Drift: |
±5×10-4 ABU/h |
Response: |
3 steps (FAST, STD and SLOW) |
Mounting: |
Front loading cassette type with bulkhead union |
Flow cell: |
Tapered cell |
Analog outputs: |
4 channel independent outputs; from no. 1 to no. 3 channels for absorbance output, no. 4 channel; absorbance or ratio output, selectable |
Output to recorder: |
10 mV/full scale |
Output to integrator: |
1V/AU, 0.2V/0.2AU, 1V/2AU |
Others: |
Maker output/input, Autozero input, LC-NET output/input, Program reset/run, Leak out |

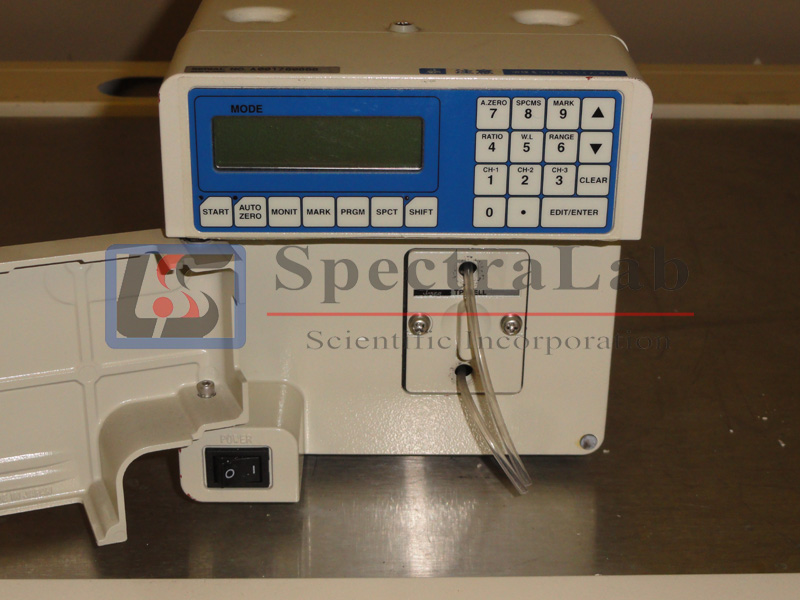

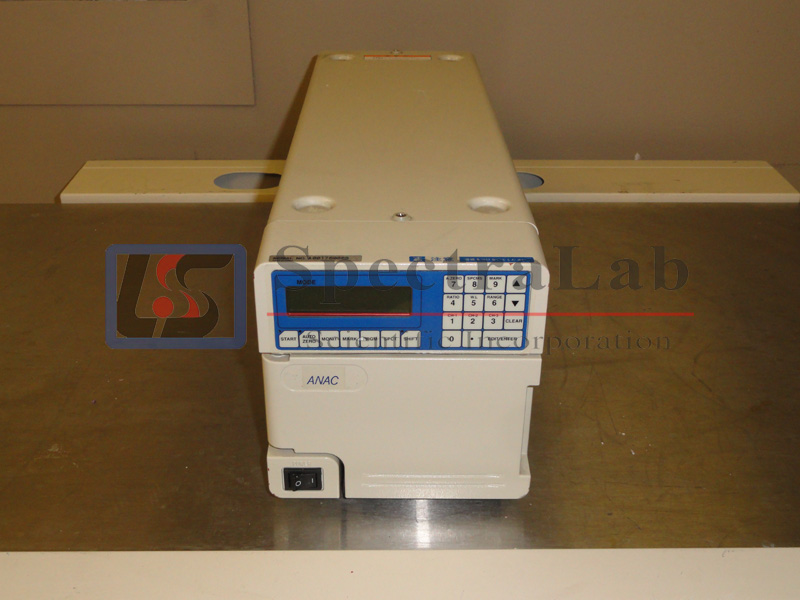

This refurbished JASCO UV-2077 4 Wavelength UV-Visible HPLC Detector is in working condition. It has been tested in SpectraLab Scientific.
A 90-day warranty is included.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
