Description

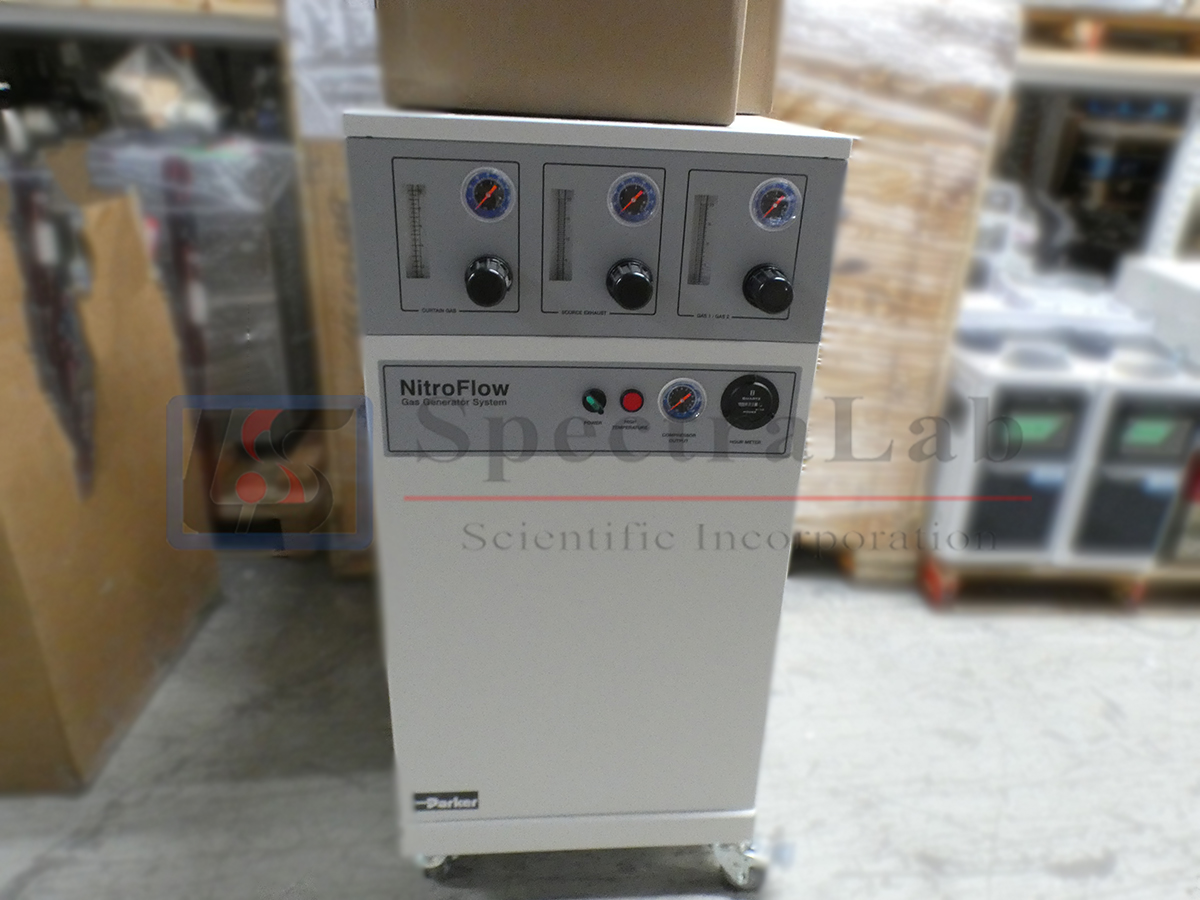

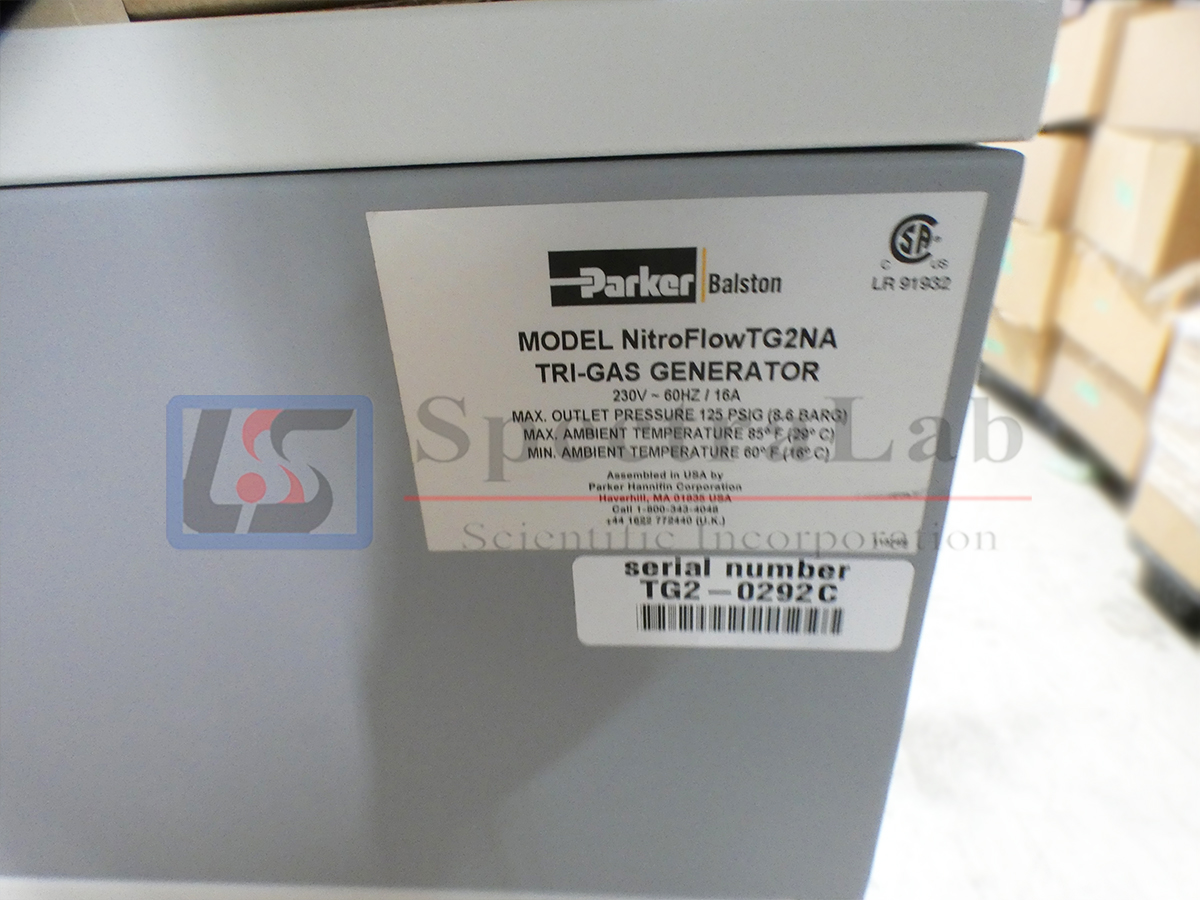

The Parker Balston NitroFlow TG2NA is a self-contained gas generator that produces up to 80 lpm of pure LCMS grade gases. The integrated system of the NitroFlow TG2NA is engineered to produce pure nitrogen gas, hydrocarbon free air, and clean, dry -40°F dew-point air delivered by a carefully matched scroll compressor.

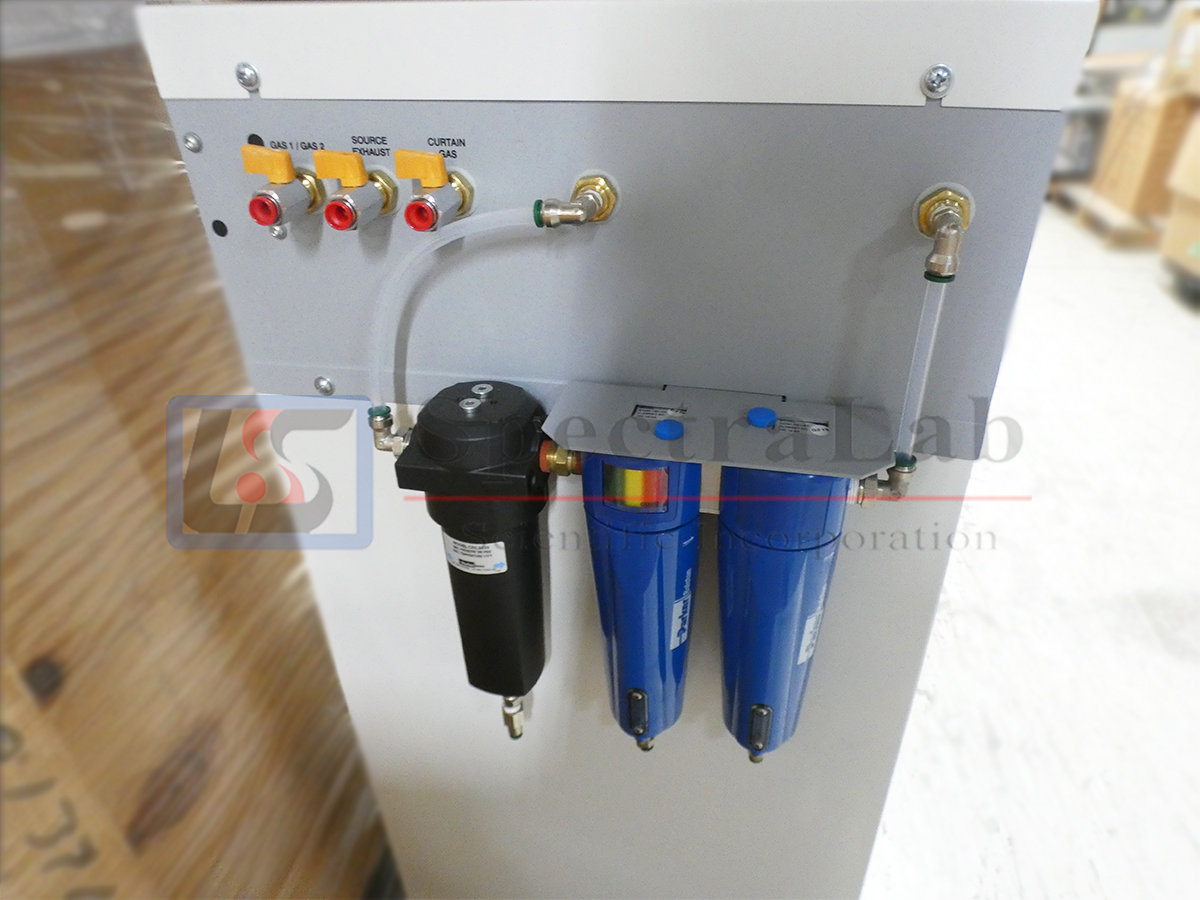

The system is housed in two fully integrated cabinets: the lower cabinet produces the compressed air using a Powerex SF130972PHP oil-less rotary scroll compressor carefully engineered with nitrogen and gas dehydration membranes. The upper cabinet separates the compressed air into the three gases: nitrogen, and hydrocarbon free dry air. The output gases are then purified using a proprietary series of unique purifiers, polishers and getter materials.
Designed for the AB Sciex 6500 series, zero air is produced at pressure above 110 psig for Gas1 and Gas2 needs. Nitrogen is produced at pressure above 80 psig for curtain cad gas and exhaust dry air is produced at pressure above 80 psig.
This combination of Parker technologies yield the highest performing, most reliable and most quiet integrated TriGas generation system available.
