Name: Shimadzu GC-2014 GC (SPL) with SFID and PID
Brand: Shimadzu
SKU: Shimadzu-G0-0300
Price: 1 USD
Availability: InStock

Shimadzu Gas Chromatograph System High Performance and Expandability Merged at a higher level

High Performance
Improved design and innovative technology for all of our injectors, detectors and flow controllers equal or surpass our GC-2010 the high-end technology leader

Easy Operation
Large LCD, all digital gases control and auto-diagnostics inherited from the GC-
2010 – “The Most advanced, easy-to-use interface.

Flexibility
Use any column types for any analysis. Packed or capillary columns give you
the freedom to choose the best technique for your measurement. Fully integrated multiple valve systems are made simple for optimum performance for SystemGC custom GC products.

This Shimadzu GC-2014 GC with SFID and PID is in great condition. It has been tested at SpectraLab Scientific.

Injection unit DINJ-W14
DFID
DTCD
DAFC

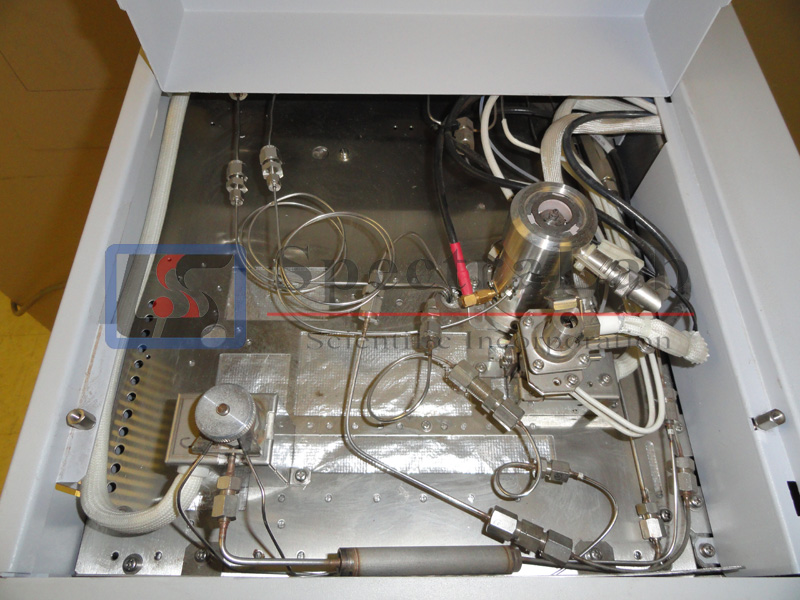

7-port valve and 10-port valve
Column oven coolant option

We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.

Thanks for looking and we look forward to hearing from you!

Specifications

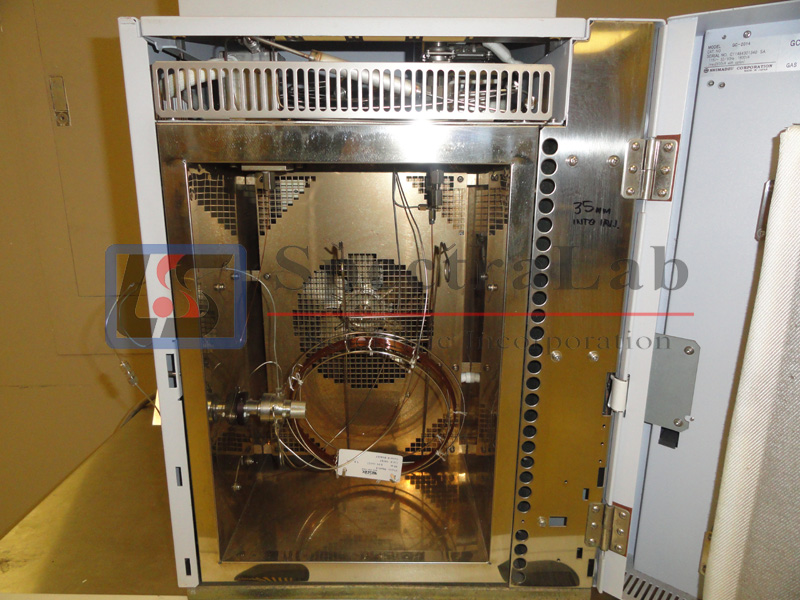

Column Oven
Temperature range	(Ambient + 10°C) ~ 400°C (using liquid CO₂ gas*: -50°C ~400°C)
Dimensions	250 (W) × 360 (H) × 175 (D) mm
Oven capacity	15.8L
Temperature accuracy	Set value (K) ± 1% (calibration at 0.01°C increments)
Temperature deviation	2°C max. (on 200mm dia. circumference 30mm from rear)
Temperature variation coefficient	0.01°C/°C
Temperature program steps	Up to 20 (cooling program possible)
Programmed rate setting range	-250°C ~ 250°C/min
Total time for all steps	9999.99 minutes max
Linear heating range	30°C/min up to 150°C 20°C/min up to 250°C 10°C/min up to 380°C 7°C/min up to 400°C (at 25°C ambient temperature)
Cooling rate	300°C ~ 50°C in 6 min max. (at 25°C ambient temperature)
Columns accepted	Capillary columns: 2 Packed columns for GC14B: 4 (Glass columns: 2)

Sample Injection Unit
Temperature range	Up to 400°C
Heating settings	1°C steps
No. of units installed simultaneously	Up to 3 units
Sample injection unit types	Dual packed, single packed, split/splitless, direct, direct (AMC)

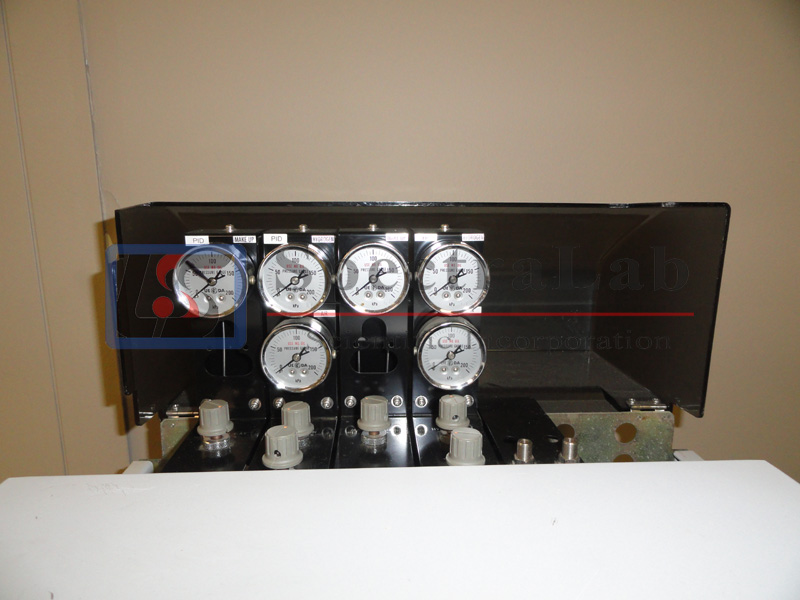

Carrier Gas Flow Controller
For Packed / Dual
Flow rate setting range	0 ~ 100mL/min
Programmable steps	7
Programmed rate setting range	400 ~ 400mL/min
Correction function	Maintains column flow rate during column oven heating
For Capillary Split/Splitless, Direct
(Split/splitless injection mode)
Pressure setting range	0 ~ 970kPa
Programmable steps	7 (pressure-decreasing program possible)
Programmed rate setting range	-400 ~ 400kPa/min
Split ratio setting range	0 ~ 9999.9
Total flow rate setting range	0 ~ 1200mL/min
Correction function	Maintains column average linear velocity during column oven heating (for capillary only)
(Pressure mode direct injection)
Pressure setting range	0 ~ 970kPa/min
Programmable steps	7
Programmed rate setting range	-400 ~ 400kPa/min
Correction function	Maintains column average linear velocity during column oven heating
(Flow-rate mode direct injection)
Flow rate setting range	0 ~ 1200mL/min
Programmable steps	7
Programmed rate setting range	-400 ~ 400mL/min
For Single Packed, Direct (AMC)
Flow rate setting range	0~100mL/min
Correction function	Maintenance column flow rate during column oven heating

Detectors
Temperature range	400°C max. (FID, TCD)
Temperature setting	1°C steps
No. of units installed simultaneously	Up to 4 units (restricted depending on detector type)
Flame Ionization Detector (FID)
System	Dual flow rate differential system
Temperature range	400°C max.
Minimum detected quantity	3pgC/s (dodecane)
Dynamic range	10⁷
Nozzle	Quartz glass Standard: for packed, Option: for capillary
Thermal Conductivity Detector (TCD)
System	Dual flow rate differential system
Temperature range	400°C max.
Dynamic range	10⁵
Sensitivity	40,000mV · mL/mg (built-in pre-amplifier, with 10 × application)
System	Fixed current system using ⁶³Ni370MBq radiation source
Temperature range	400°C max.
Minimum detected quantity	0.1pg/s (γ-BHC)
Dynamic range	10⁴
Flame Photometric Detector (FPD)
Temperature range	350°C max.
Dynamic range	P: 10⁴ S: 10³
Minimum detected quantity	P: 0.5pgP/s (tributyl phosphate) S: 8pgS/s (dodecane thiol)
Flame Thermionic Detector (FTD)	(Two types, one for capillary and one for packed. The speci‑cation are the same.)
Temperature range	400°C max.
Dynamic range	N: 10³ P: 10³
Minimum detected quantity	N: 0.4pgN/s (azobenzene) P: 0.05pgP/s (malathion)
