Shimadzu TOC-L CPN Analyzer with Total Nitrogen Unit TNM-L & ASI-L Autosampler

Shimadzu TOC-L CPN Analyzer with Total Nitrogen Unit TNM-L & ASI-L Autosampler
Item ID:


Condition: Refurbished

Availability: In Stock

Manufacturer: ShimadzuPrice:

Request Quote/ Offer

Warranty Included


CAN/US: 3-5 business days
International: 5-10 business days

For assistance and further information:

Toll Free: 1-866-777-3688
Tel: 905-946-8066

Spectralab is your one stop shop for all your analytical laboratory needs!

Your source for


and Spectralab Scientific



We will match our competitor's price!

To Sell, Trade in, or Service Your Equipment

The Shimadzu TOC-L series of analyzers adopts the 680°C combustion catalytic oxidation method, which was developed by Shimadzu and is now used worldwide. While providing an ultra wide range of 4 μg/L to 30,000 mg/L, this analyzer boast a detection limit of 4 μg/L through coordination with NDIR. This is the highest level of detection sensitivity available with the combustion catalytic oxidation method. In addition, the combustion catalytic oxidation method makes it possible to efficiently oxidize not only easily-decomposed, low-molecular-weight organic compounds, but also hard-to-decompose insoluble and macromolecular organic compounds.

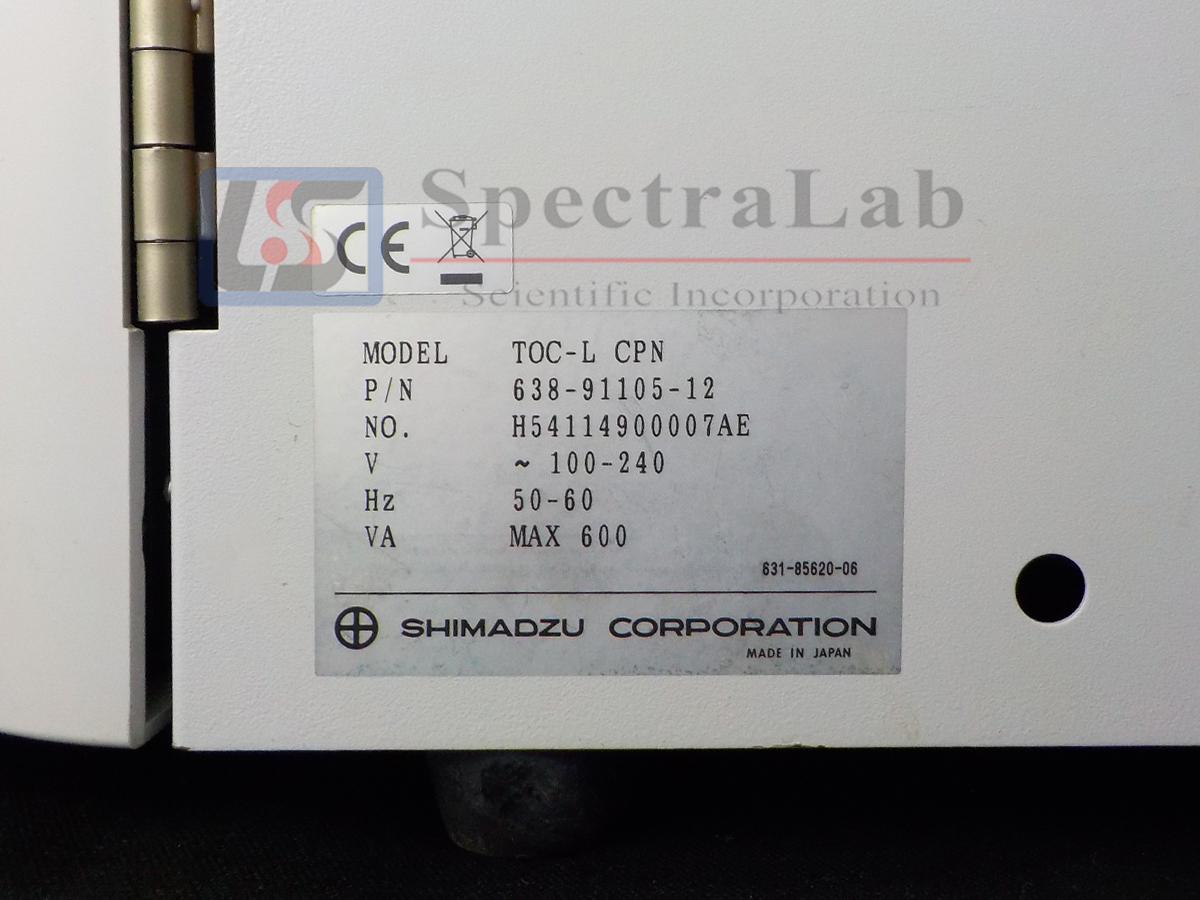

  • Shimadzu TOC-L CPN Total Organic Carbon Analyzer

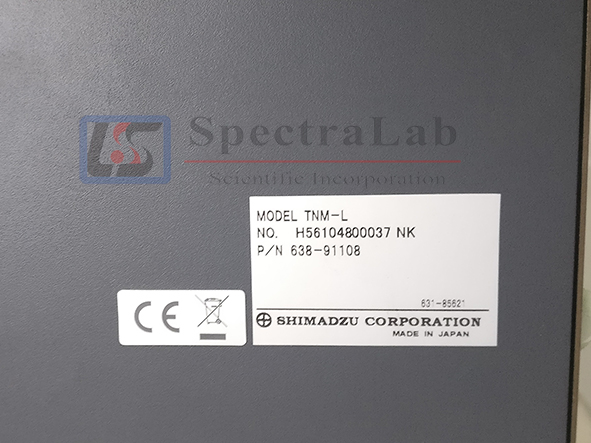

  • Shimadzu TNM-L Total Nigrogen Unit

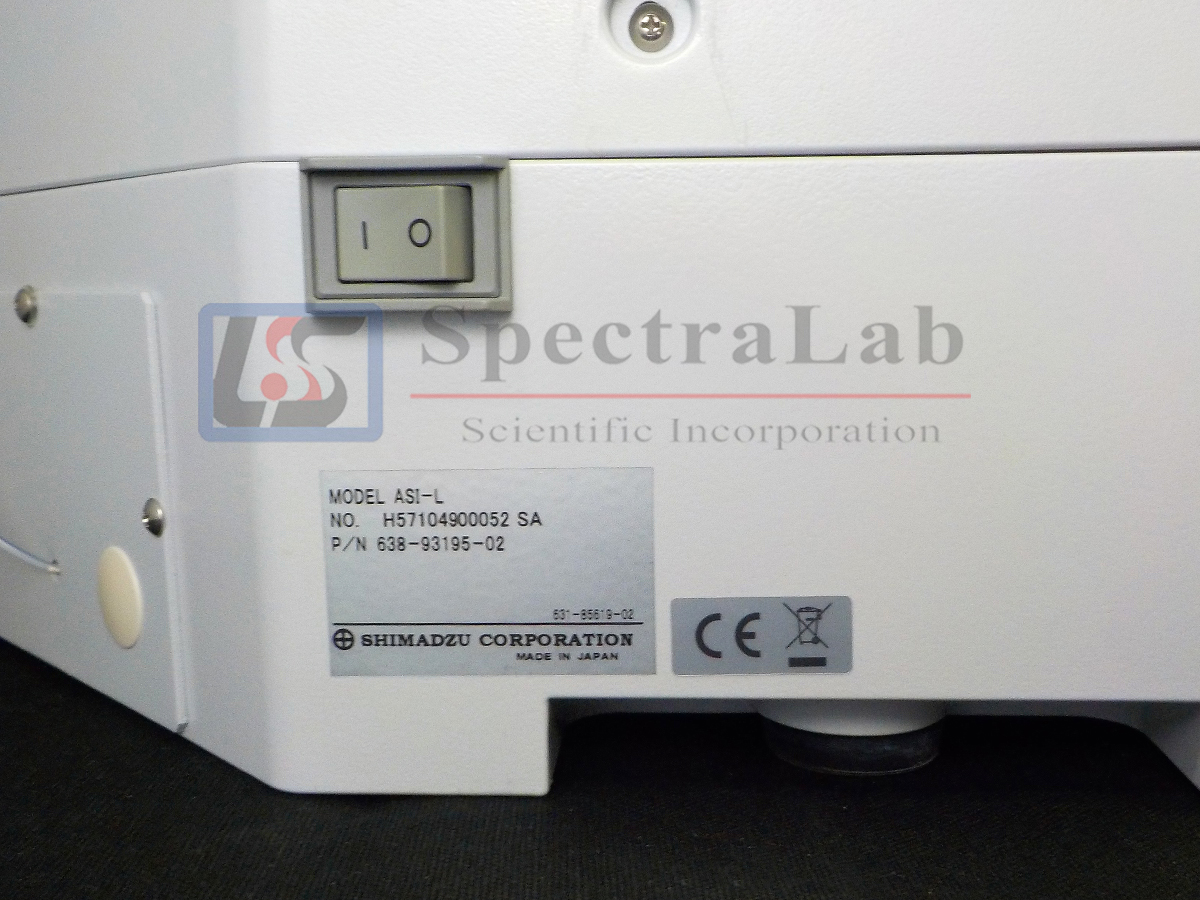

  • Shimadzu ASI-L Autosampler
  • Necessary tubes and supplies
  • PC and Software


Type Specifications
Measured Items TC (total carbon)
IC (inorganic carbon)
TOC (total organic carbon)
NPOC (Non-Purgeable Organic Carbon)
Measurement Range TC:50 μg/L – 30,000 mg/L
IC:4 μg/L – 3,000mg/L
TN:20 μg/L – 10,000 mg/L
Carrier gas High-purity air (CO, CO2, HC content: Each 1 ppm max., dew point: -50 °C max.) Supply pressure: 200 ± 10 kPa (Additional use of optional carrier gas regulator: 300 to 600 kPa) Optional use of nitrogen gas (not possible in the TN measurement). With the standard model, optional use of pressurized gas
Reproducibility TC, NPOC: CV 1.5 % max. or ±50 µg/L max
IC: CV 1.5 % max. or ±4 µg/L max
Measuring time TC: approx. 3 min
IC: approx. 4 min
Sample dilution Dilution rate of 2x to 50x (automatic sample dilution by syringe pump), dilution accuracy: ± 2 % max. (2x to 20x), ± 5% max. (21x to 50x)
Type Specifications
Measurement range 4 µg/L to 30,000 mg/L (TC)
Type Specifications
Measurement Chemiluminescence
Measurement Range up to 10000 mg/L
Detection limit 5 µg/L (CPH, CSH)
20 µg/L (CPN, CSN)
Reproducibility: CV 3 % max.
Measuring time approx. 4 min
Ozone source gas air (compressed or housing air) 500 mL/min
Type Specifications
Vial types 9 mL, 24 mL, 40 mL
Number of vials 9 mL: 93
24 mL: 93
40 mL: 68
