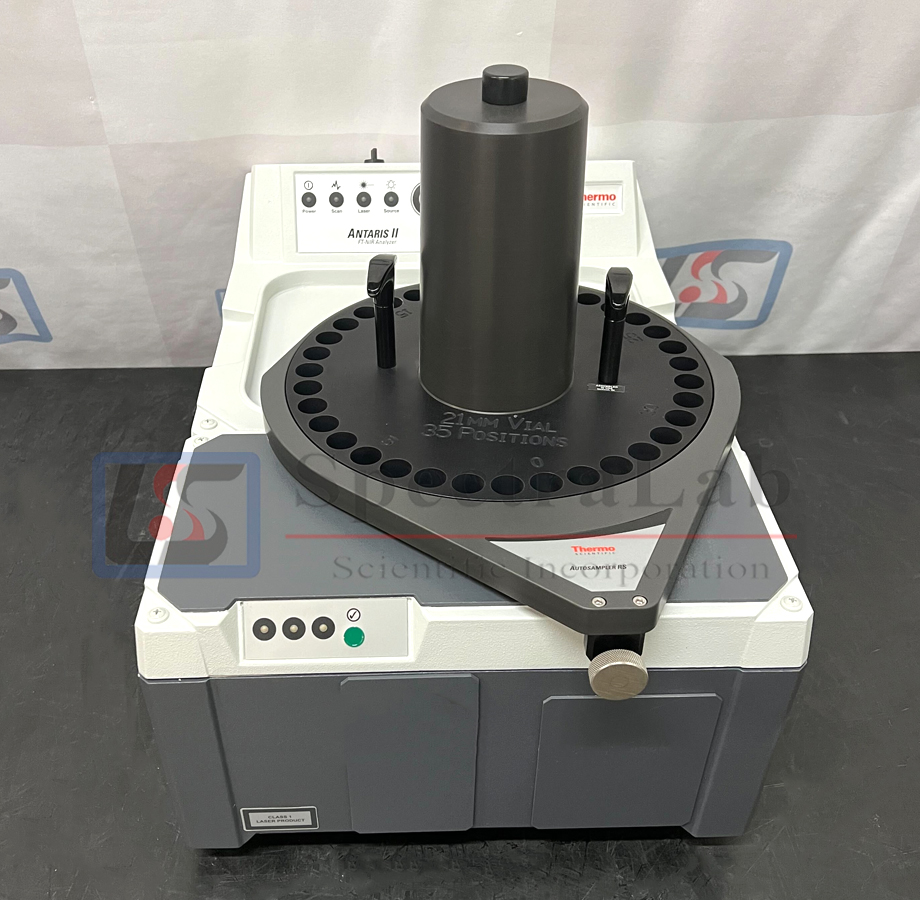

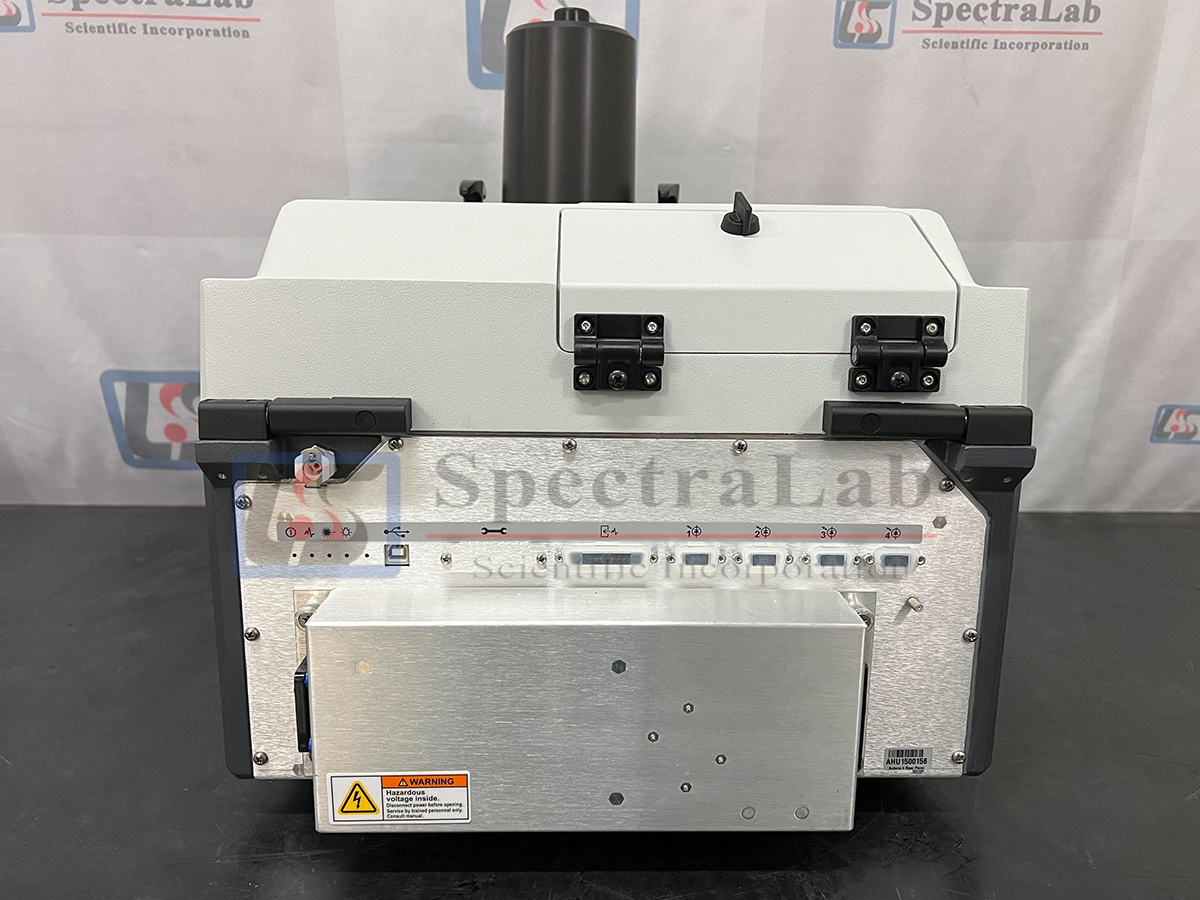

Easily implement laboratory-based FT-NIR performance in a ready-for-plant package using the Thermo Scientific Antaris II FT-NIR Analyzer. With industry-leading method transfer performance, the Antaris II FT-NIR Analyzer provides robust and reliable data collection for at-line, online and in-line analysis. You can customize an Antaris II FT-NIR Analyzer for specific applications or choose the Antaris II MDS Method Development Sampling System, which includes transmission, fiber-optic and integrating sphere diffuse reflection analysis all in one turnkey system.
Specifications:
| Analyzer Type | Fourier Transform Near-Infrared |
| Detection | High sensitivity, high stability matched InGaAs |
| Height (Metric) | 33 cm |
| Interface | Direct PC to Ethernet allows file system and OPC communications |
| Interferometer | Proven, frictionless, stable, long-life Michelson |
| Length (Metric) | 68.5 cm |
| Operating Temperature Range | 15°C to 35°C (59° to 95°F) |
| Photometric Linearity | Slope 1.0 ±0.05 and an intercept of 0.0 ±0.05 |
| Resolution | 4 cm-1 across spectral range (0.6 nm at 1250 nm), 2 cm-1 option across spectral range (0.3 nm at 1250 nm) |
| Sampling Mode | Configurable with reflection, transmission, fiber optics, or tablet transmission. |
| Sealed and Desiccated | Yes |
| Source Type | Long-life, high intensity halogen NIR source; spare source included with system, guaranteed filament image alignment |
| Spectral Range | 12,000 to 3800 cmto1 (833 to 2630 nm) |
| System Status Indicators | Yes |
| Voltage | 90/264 V |
| Wavenumber Accuracy | ±0.03 cm-1 (0.005 nm at 1250 nm) |
| Wavenumber Repeatability | Single System: 10 measurement standard deviation <0.006 cm-1 |
| Wavenumber Reproducibility | System to System: Better than 0.05 cm-1 (0.008 nm at 1250 nm) |
| Weight (Metric) | 47.7 kg |
| Width (Metric) | 40.6 cm |
