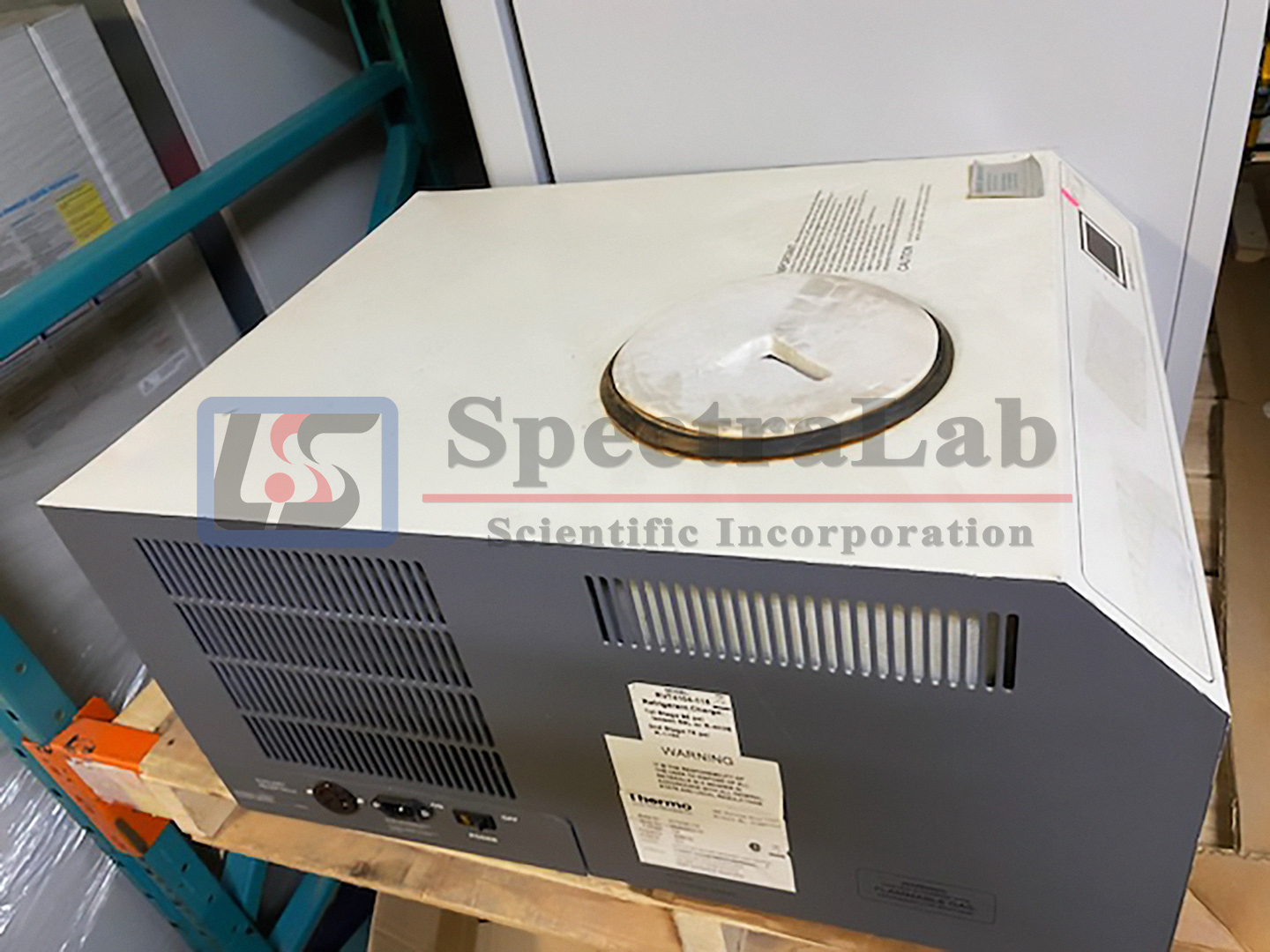

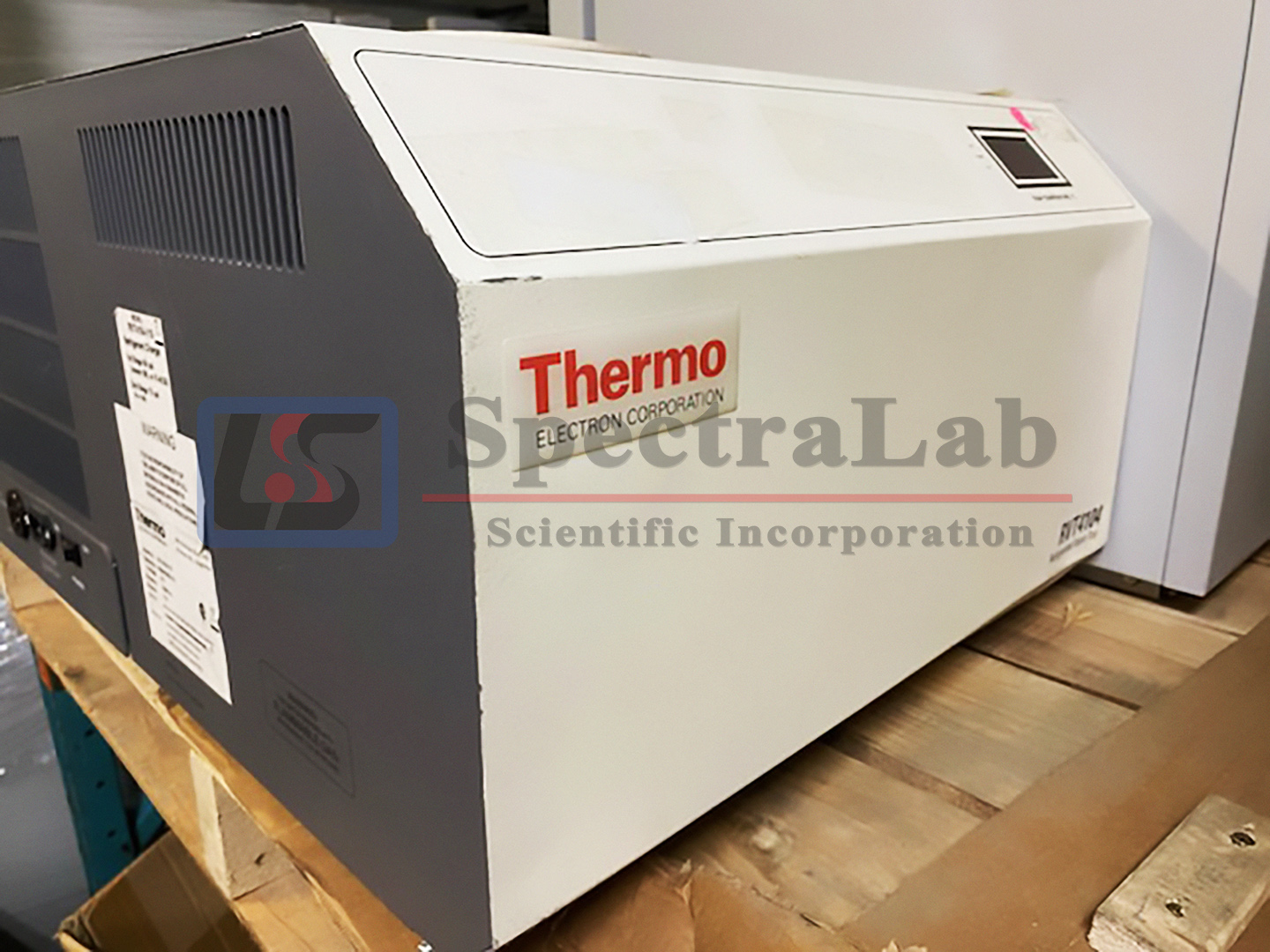

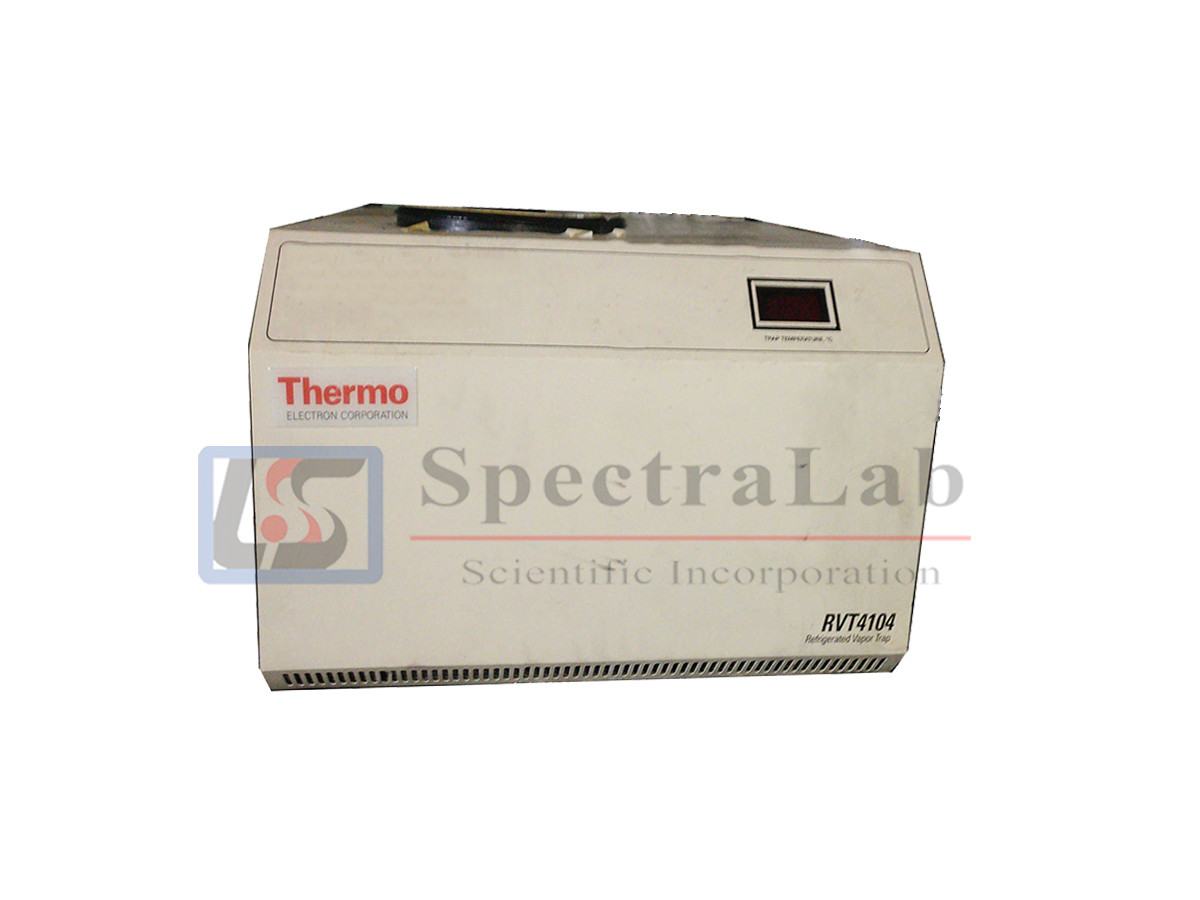

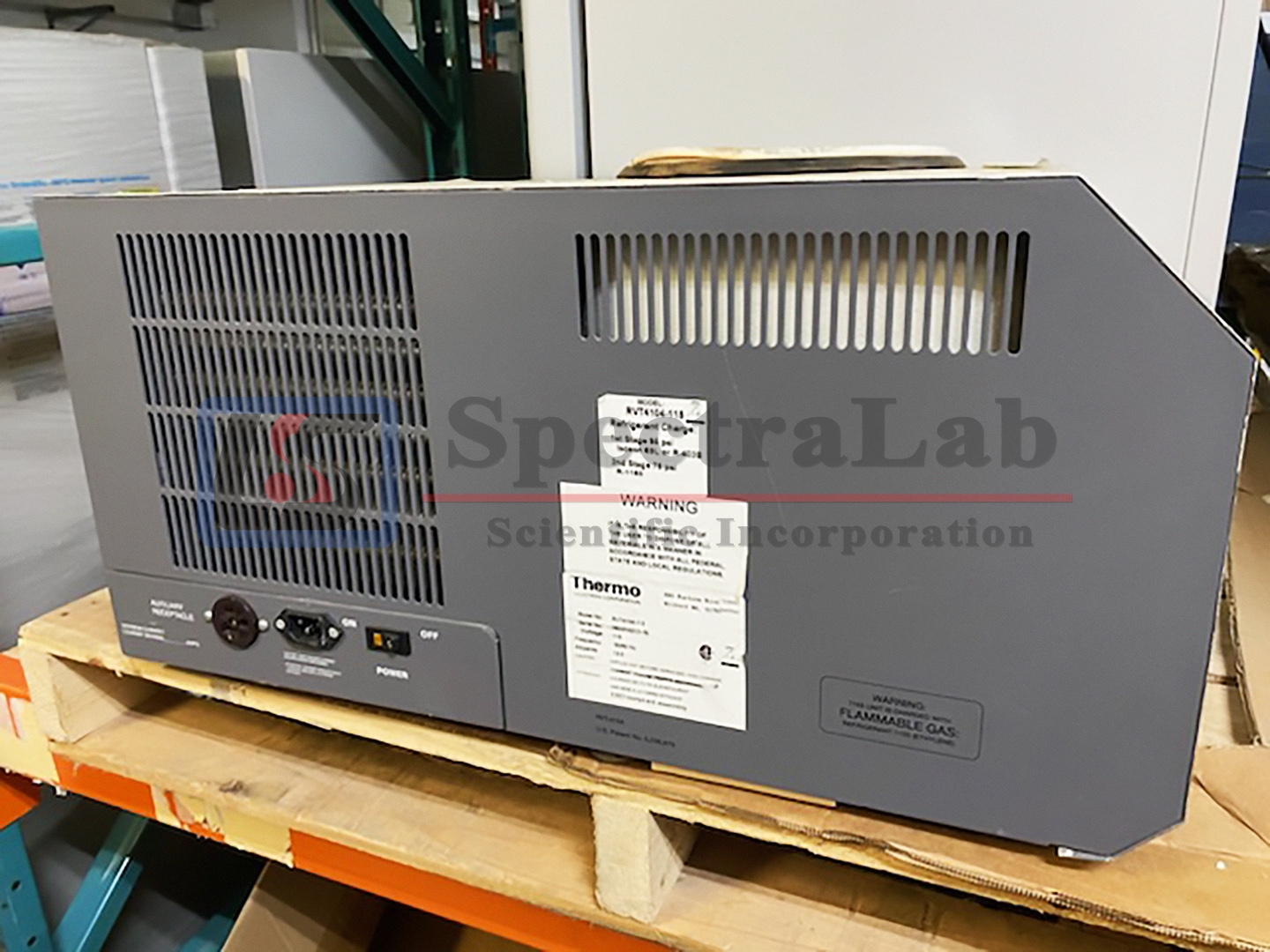

Savant RVT4104 Refrigerated Vapor Trap from Thermo Scientific effectively condenses and traps a wide variety of solvent vapors that can contaminate and degrade vacuum pump oil. The RVT 4104 delivers an easy, safe and practical way to protect high vacuum, oil-sealed pumps in vacuum evaporation systems. The Savant RVT4104 ultra-low temperature refrigerated vapor trap, includes a built-in temperature gauge and vacuum pump interlock to protect the pump from accidental contamination. The RVT4104 has a 4L capacity; ultra low -104°C temperature traps high volatile solvents. 0.5″ ID connecting hose is a consumable and also not included The Savant RVT system is great for labs using highly volatile solvents including hexane, chloroform, acetone, and methylene chloride.
Specifications:
- Ultra Low Temperature Range: 0° to -104°C
- Maximum Capacity: 4 Liters
- Dimensions (W x D x H): 20″ x 26″ x 13″ inches
- Power: 120V | 60Hz
- Weight: 138 lbs.
