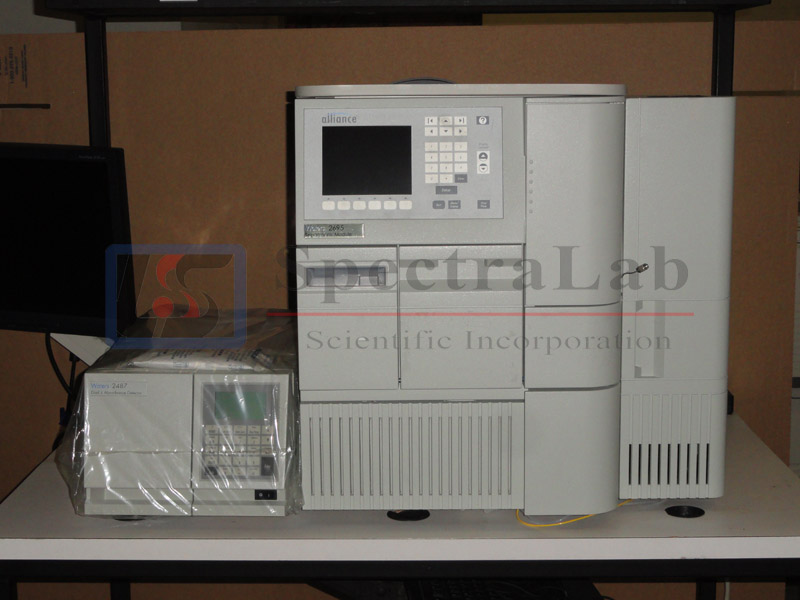

This refurbished Waters Alliance 2695 HPLC system comes with a NEW IN BOX Waters 2487 Dual Absorbance UV/Vis Detector. They are in a great condition.
A 90 days warranty is include.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
Solvent Management | |
Number of solvents | One to four |
Solvent conditioning | Vacuum degas, two operating modes, four chambers, 500 µL internal volume per chamber |
Flow rate range | 0.000 to 10.000 mL/min (0.050 to 5.000 mL/min typical) in 0.001 mL/min increments |
Compressibility compensation | Automatic continuous |
System delay volume | < 650 µL, independent of backpressure at 1 mL/min |
Plunger seal wash | Integral, active, programmable |
Gradient profiles | 11 gradient curves (including linear, step [2], concave [4], and convex [4]) |
Dry prime/ wet prime | Automatic front panel control, SystemPREP function for automatic solvent(s) purge |
Flow ramping | Time (0.01 to 30.00 min in 0.01 min increments) to reach maximum flow rate |
Maximum operating pressure | 500 psi (345 bar)(0.010 to 3.000 mL/min) programmable upper and lower limits |
Composition range | 0.0% to 100.0%, in 0.1% increments |
Composition accuracy | +0.5% absolute, independent of backpressure (proportioning valve pair test,[degassed methanol: methanol/proplyparaben, 2.0 mL/min, 254nm]) |
Composition precision | <0.15% RSD or <0.02 min SD, six replicates, based on retention time or volumetric measures (0.200 to 5.000 mL/min),isocratic premix |
Flow accuracy | +1% or 10 µL/min, which is greater, 0.200 to 5.000 mL/min, |
Sample management | |
Number of samples vials | 120 vials, configured in five carousels of 24 vials each |
Number of sample injections | 1 to 99 injections per sample vial |
Sample delivery precision | Typically <0.5% RSD, 5 to 80 µL (degassed methanol: water 60:40 dial-a-mix, 1 mL/min, six replicates, phenone mix, 254 nm) |
Sample carryover | <0.01% for caffeine, under specified conditions |
Injection needle wash | Integral, active, programmable |
Injection accuracy | +1µL (+2%)(50µL, N-6), sample: 100% degassed water, analytical solvent: 100% degassed methanol |
Standard sample vial | 2 mL |
Advanced operations | Priority samples, auto additions, auto standards |
Injection volume range | 0.1 to 100 µL, standard; 0.1 to 2000 µL, with optional sample loop |
Injector linearity | >0.999 coefficient of deviation (1.000 to 100.000 µL) |
Minimum sample required | 10 µL, using low volume inserts |
Sample temperature control (optional) | 4 to 40°C, programmable in 1°C increments |
Column heater (optional) | 20 to 65 °C, in 1 °C increments (5°C above ambient) |
Column heater/cooler(optional) | Ambient minus 15°C to 4°C (whichever is greatest) up to 65°C, in 1°C increments |

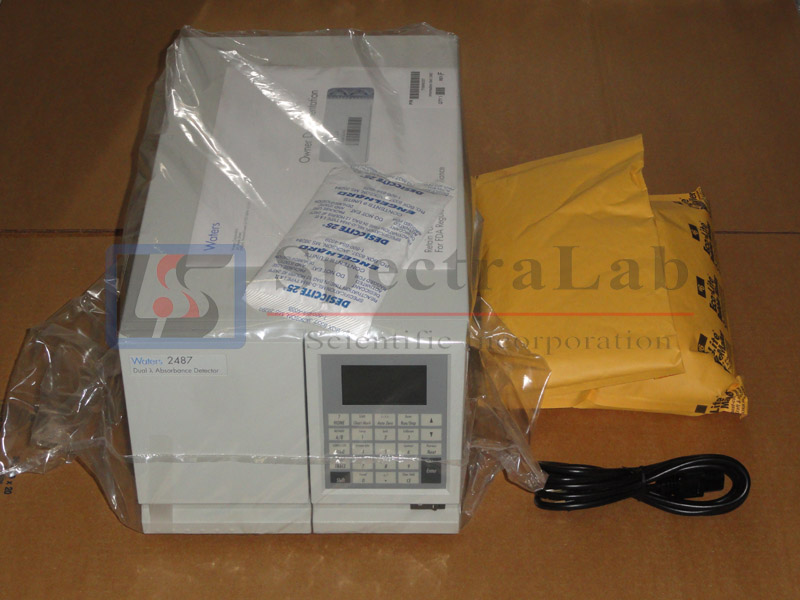

Waters 2487 Dual Absorbance UV/Vis Detector
Specification | |
Wavelength range | 190 to 700 nm |
Bandwidth | <5 nm |
Wavelength accuracy | +1.0 nm |
Wavelength repeatability | +0.1 nm |
Single λ dry noise | <5 µAU (at 230 nm, 1 –second digital filter, 30-second segments, 10-Hz data rate, analytical cell) |
Wet noise | <8 µAU (at 230 nm, 1-second digital filter 30-second segments, 10-Hz data rate, analytical cell) |
Dual channel noise (dry) | <35 µAU (measured at 230 nm, running at 230 to 280 nm with 2-second filter at 1-Hz data rate; dry, analytical cell) |
Dual channel noise (wet) | <45 µAU (measured at 230 nm, running at 230 to 280 nm with 2-second filter at 1-Hz data rate; 1 ml/min, flow of acetonitrile, analytical cell) |
Linearity | <5% at 2.5 AU, propylparaben at 257 nm |
Drift | 1.0 x 10-4 AU/hr. max (∆T = +2°C/hr.) |
Thermal drift | 1.0 x 10-4 AU/°C max (∆T = +2°C/hr.) |
Sensitivity setting range | 0.0001 to 4.0000 AUFS |
Filter setting range | Single-wavelength: 0.1 to 5.0 seconds Dual-wavelength: 1 to 50 seconds |
Time-constant | To 5.0-second Hamming filter |
Digital data rates | 1,2,5,10,20,40,80 Hz (single channel) 1,2 Hz (dual channel) |
Analog output data rates (single λ mode) | 10,20,40,80 Hz (channel A) 10 Hz only (channel B) |
Lamp source | 30-W High Brightness Deuterium lamp, 0.5 nm aperture, pre-aligned 2000 silicon photodiodes (matched pair) |
Second-order filter | Automatic for wavelengths > 370 nm |
Wavelength calibration filter | Erbium filter, used at startup or on demand |
Flow cell | TaperSlit flow cell design |
Nitrogen purge | Purge fitting present on optics bench |
Path length | 10 mm (standard analytical) |
Cell volume | 10 µL (standard analytical) |
Pressure limit | 6895 kPa (69 bar,1000 psi) |
Materials | 316 stainless steel, fused silica, Tygon |
Operating temperature | 4 to 40 °C (39 to 104 °F) |
Operating humidity | 20% to <95%, noncondensing |
Shipping and storage | -30 to +60 °C |
Shipping and storage humidity | 0% to <95% noncondensing |
