Condition | Specification |
Signal input range | -0.25 to 2.25 V |
Dimensions Bus SATIN module Power supply |
6.33 wide x 9.5 deep x 2.32 high (16.01 cm by 24.13 cm x 5.9 cm) 3.4 wide x 5.87 deep x 2.0 high (8.64 cm wide x 14.91 cm deep x 5.08 cm high) |
Weight Bus SAT/IN module Power supply |
1.68 lbs (0.762 kg) 1.34 lbs (0.608 kg) |
A/D converter | 10 MHz voltage to frequency |
Linearity range | 0.1% over –0.250 to 2.250 V |
Resolution | 1 point/sec = 10 million:1 10 points/sec = 1 million:1 |
Data acquisition rates | 0.25, 1, 2, 5, 10, 20, 25, 50, and 100 points/sec |
BCD reader | 8 bits |
Power supply Input, auto-adjust Output Power output (max) |
90 VAC to 265 VAC, 47 to 63 Hz +5 VDC, ± 12 VDC 25 watts |
Typical noise | 4 to 6 µV, (RMS) inputs shorted |
Operating temperature | 50 to 95 °F (10 to 35°C) |
Operating humidity | 20 to 80 % non-condensing |

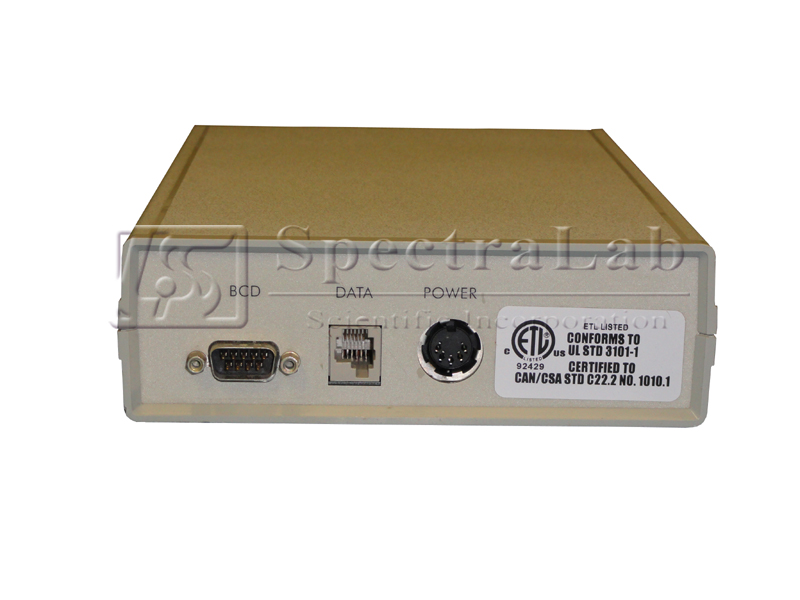

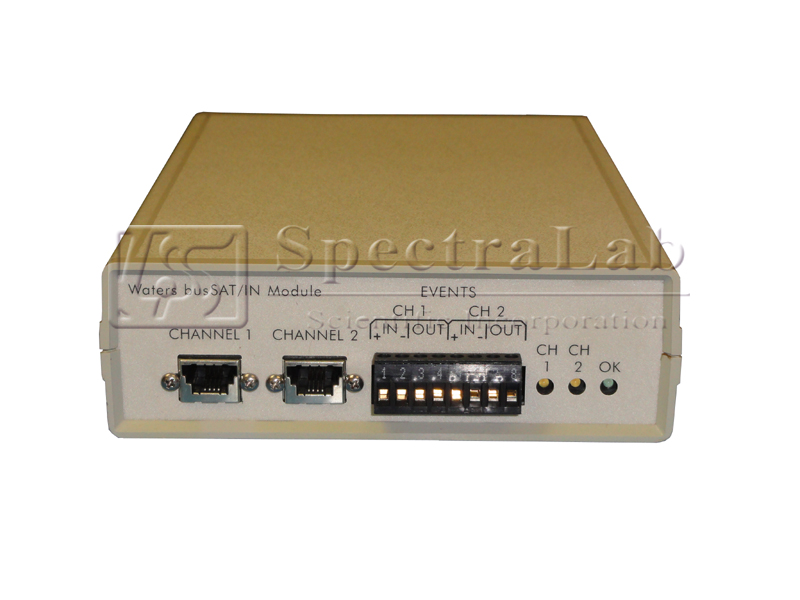

This refurbished Waters busSAT/IN Module is in great condition. It has been tested at SpectraLab Scientific.
A 90 day warranty is included. Multiple available.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
