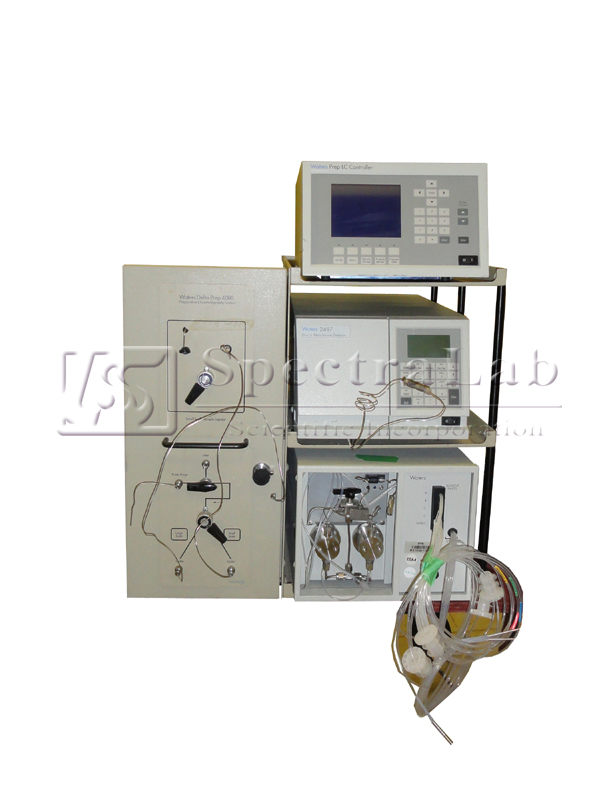

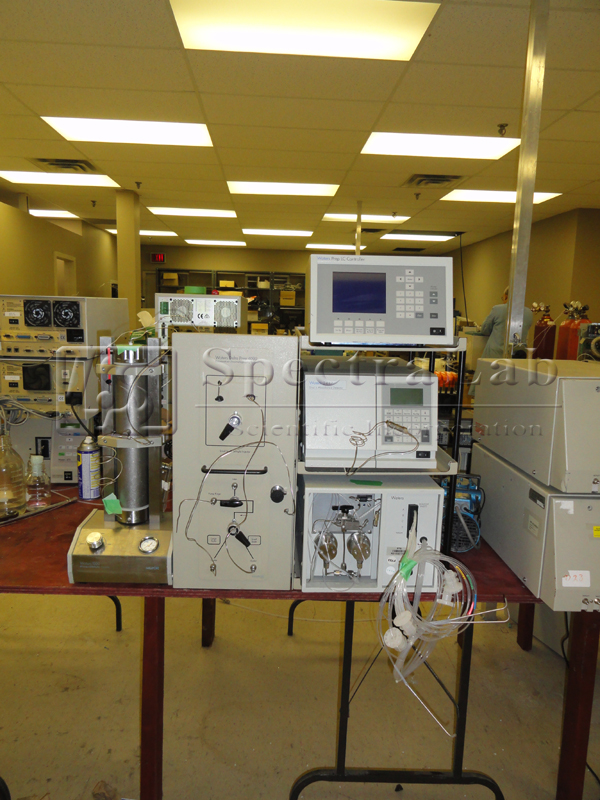

This refurbished Waters Delta Prep 4000 preparative chromatography system comes with waters prep LC Controller, Waters 2487 Dual λ Absorbance Detector and Waters Prep Pump. The Waters PrepLC 4000 system provides high resolution, preparative capability –from hundreds of milligrams to grams per run with the best price/performance ratio of any preparative HPLC system.
This Waters PrepLC 4000 system is ideal for dedicated preparative LC applications, where high volume sample loads may be purified, fractions collected and the column automatically flushed prior to the next run. This system can also be used for checking fractions for purity – all on the same system.
This refurbished Waters Prep 4000 System is in great condition. It has been tested at SpectraLab Scientific.
A 90 day warranty is included. Multiple available.
We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members.
Thanks for looking and we look forward to hearing from you!
Power | 110 or 220V AC |
Temperatures |
Operating: 4° – 40° C Storage: 0° – 50° C |
Maximum pressure | 4000 psi (0.5 – 150 ml/min) |
Wetted surfaces | 316 stainless steel, Teflon, sapphire, ruby |
Seal material | Filed PTFE |
Outputs |
4 event out (+12 or ground) 1 hold 1 chart out (%A, %B, %C,%D, flow) 1 pressure out |
Inputs |
1 injector 1 stop flow 1 hold |
Waters 2487 Dual Absorbance UV/Vis Detector
Specification | |
Wavelength range | 190 to 700 nm |
Bandwidth | <5 nm |
Wavelength accuracy | +1.0 nm |
Wavelength repeatability | +0.1 nm |
Single λ dry noise |
<5 µAU (at 230 nm, 1 –second digital filter, 30-second segments, 10-Hz data rate, analytical cell) |
Wet noise |
<8 µAU (at 230 nm, 1-second digital filter 30-second segments, 10-Hz data rate, analytical cell) |
Dual channel noise (dry) |
<35 µAU (measured at 230 nm, running at 230 to 280 nm with 2-second filter at 1-Hz data rate; dry, analytical cell) |
Dual channel noise (wet) |
<45 µAU (measured at 230 nm, running at 230 to 280 nm with 2-second filter at 1-Hz data rate; 1 ml/min, flow of acetonitrile, analytical cell) |
Linearity | <5% at 2.5 AU, propylparaben at 257 nm |
Drift | 1.0 x 10-4 AU/hr. max (∆T = +2°C/hr.) |
Thermal drift | 1.0 x 10-4 AU/°C max (∆T = +2°C/hr.) |
Sensitivity setting range | 0.0001 to 4.0000 AUFS |
Filter setting range |
Single-wavelength: 0.1 to 5.0 seconds Dual-wavelength: 1 to 50 seconds |
Time-constant | To 5.0-second Hamming filter |
Digital data rates |
1,2,5,10,20,40,80 Hz (single channel) 1,2 Hz (dual channel) |
Analog output data rates (single λ mode) |
10,20,40,80 Hz (channel A) 10 Hz only (channel B) |
Lamp source | 30-W High Brightness Deuterium lamp, 0.5 nm aperture, pre-aligned 2000 silicon photodiodes (matched pair) |
Second-order filter | Automatic for wavelengths > 370 nm |
Wavelength calibration filter | Erbium filter, used at startup or on demand |
Flow cell | TaperSlit flow cell design |
Nitrogen purge | Purge fitting present on optics bench |
Path length | 10 mm (standard analytical) |
Cell volume | 10 µL (standard analytical) |
Pressure limit | 6895 kPa (69 bar,1000 psi) |
Materials | 316 stainless steel, fused silica, Tygon |
Operating temperature | 4 to 40 °C (39 to 104 °F) |
Operating humidity | 20% to <95%, noncondensing |
Shipping and storage | -30 to +60 °C |
Shipping and storage humidity | 0% to <95% noncondensing |
