Serial Number: 10256
Model: FlowCAM VS-I (identified on service label)

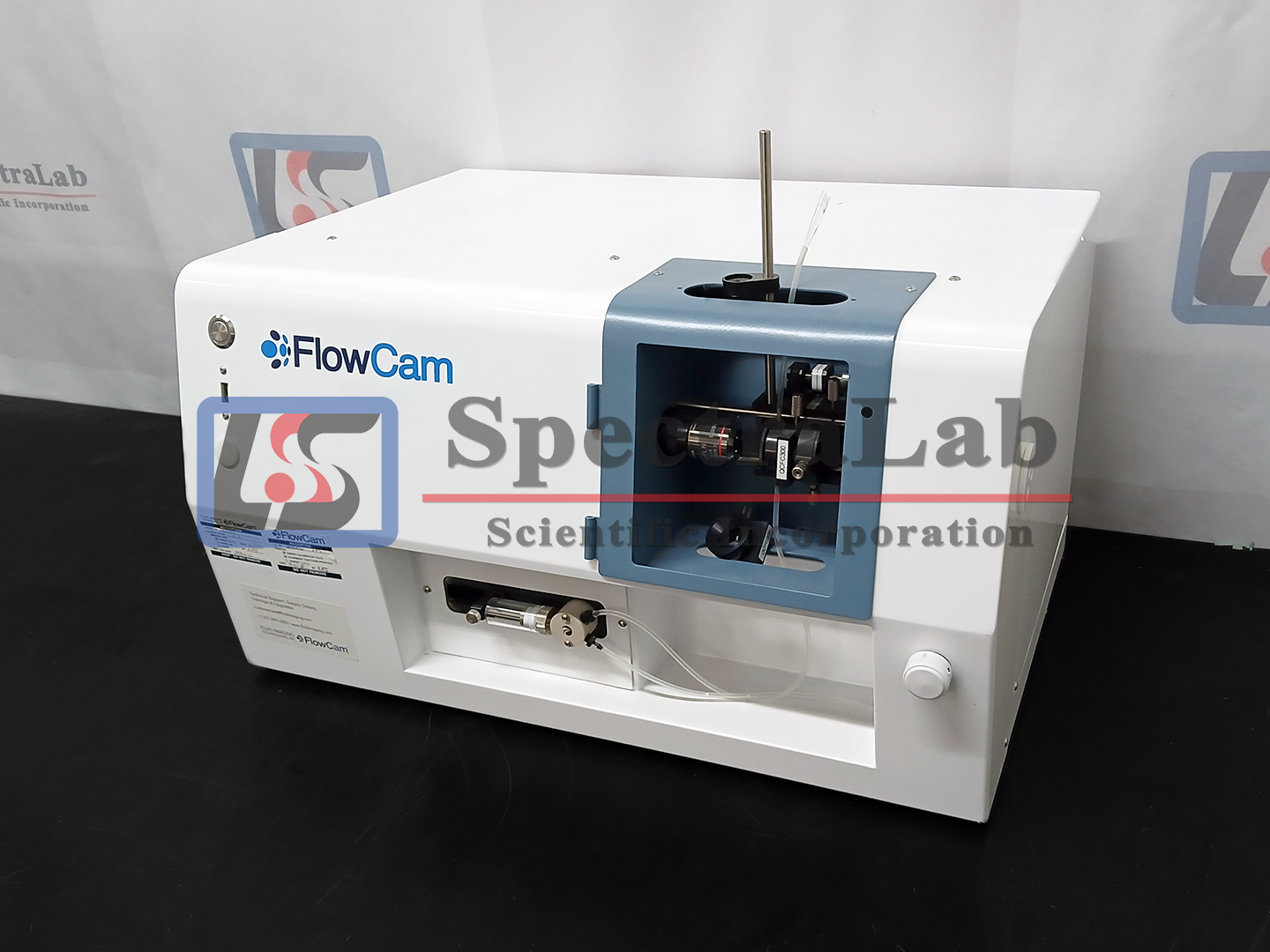

The Yokogawa FlowCAM Flow Imaging Microscope is an automated particle imaging and analysis system designed for characterizing particles suspended in liquids. Combining digital microscopy with flow-based sample handling, the system enables particle counting, sizing, shape analysis, and visual characterization.
This unit is identified as a FlowCAM VS-I on its service/calibration label and appears to be an imaging-only configuration, without fluorescence or light-scatter triggering capabilities.
The system is equipped with an Olympus UPlan FL N 4× / 0.13 objective and a QCFC300 flow cell/holder assembly, consistent with a 300 µm flow-cell configuration as described in the instrument manual.
Features and Capabilities:
- Automated flow imaging microscopy
- High-resolution digital particle imaging
- Particle counting, sizing, and shape analysis
- Real-time particle visualization and analysis
- Olympus UPlan FL N 4× / 0.13 objective
- QCFC300 flow cell/holder assembly
- Imaging-based particle detection and characterization
- Suitable for particle analysis in liquid samples
Installed Configuration
| Component | Specification |
| Model | FlowCAM VS-I (service label identification) |
| Imaging Mode | Digital imaging only |
| Objective Lens | Olympus UPlan FL N 4× / 0.13 |
| Flow Cell / Holder | QCFC300 |
| Flow Cell Size | 300 µm (consistent with manual) |
| Fluorescence Detection | Not indicated for this configuration |
| Fluorescence Excitation Laser | Not applicable |
| Light Scatter Detection | Not indicated for this configuration |
Service and Calibration History

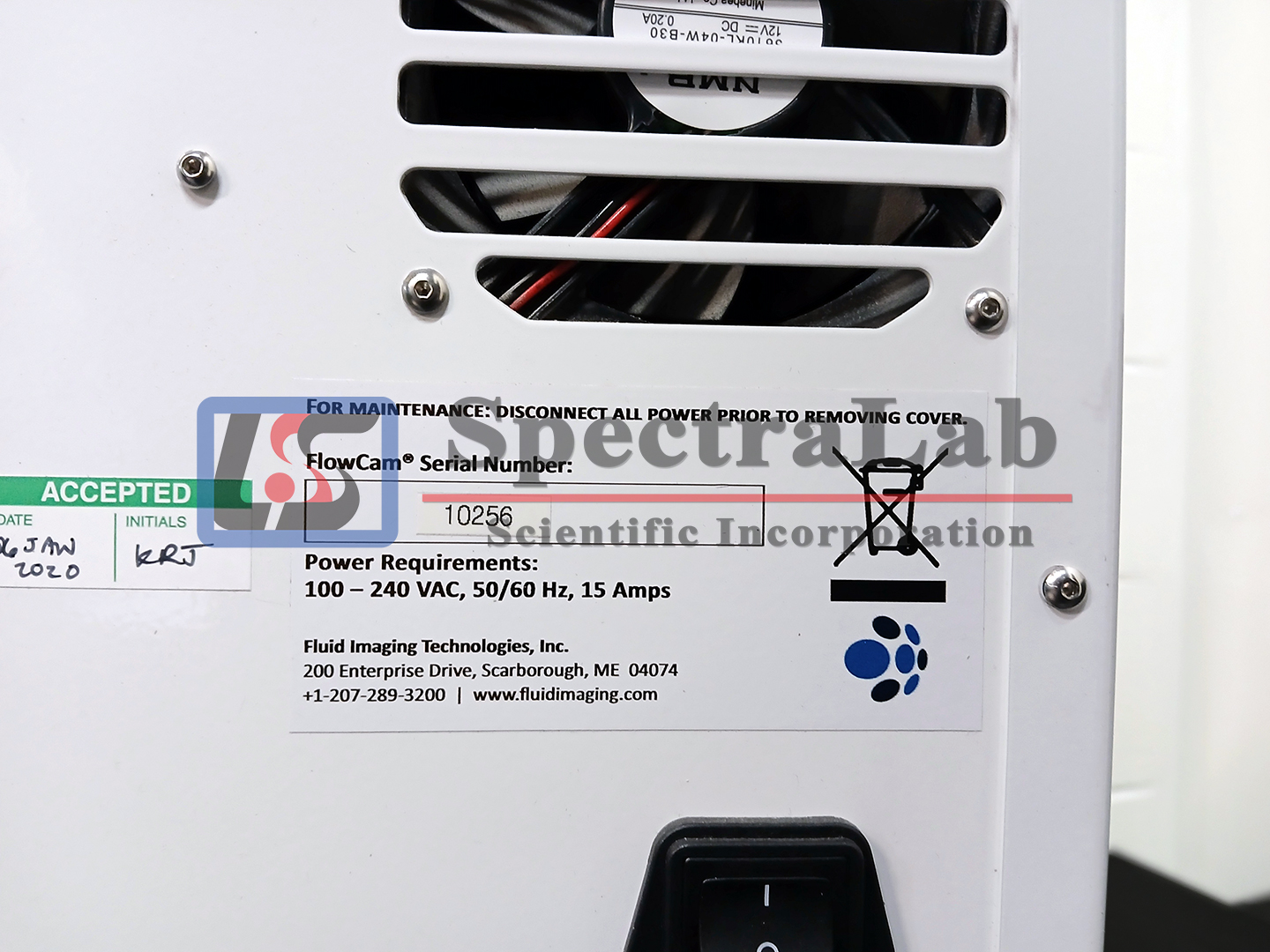

The instrument retains historical service and calibration labels, including an IQ/OQ service marking dated 2020. A service/calibration label also identifies the model as “VS I.”
Note: The VS-I model identification is based on the handwritten service label. The configuration and installed components are based on visible hardware markings and the instrument manual. Final specifications and operational performance are subject to verification
