Agilent TV902 Turbo Vacuum Pump with Control Unit

Agilent TV902 Turbo Vacuum Pump with Control Unit
Item ID:

ATV-902-TVP-CU


Condition: Refurbished

Availability: In Stock

Manufacturer: Agilent (HP)Price:

Request Quote/ Offer

Warranty Included, Onsite/ Remote Installation and Training Available

Shipping:

CAN/US: 3-5 business days
International: 5-10 business days



For assistance and further information:

Toll Free: 1-866-777-3688
Tel: 905-946-8066
E-Mail: info@spectralabsci.com

Spectralab is your one stop shop for all your analytical laboratory needs!

Your source for

PRE-OWNED

and Spectralab Scientific

CERTIFIED

Equipment.

We will match our competitor's price!

To Sell, Trade in, or Service Your Equipment

This set includes:

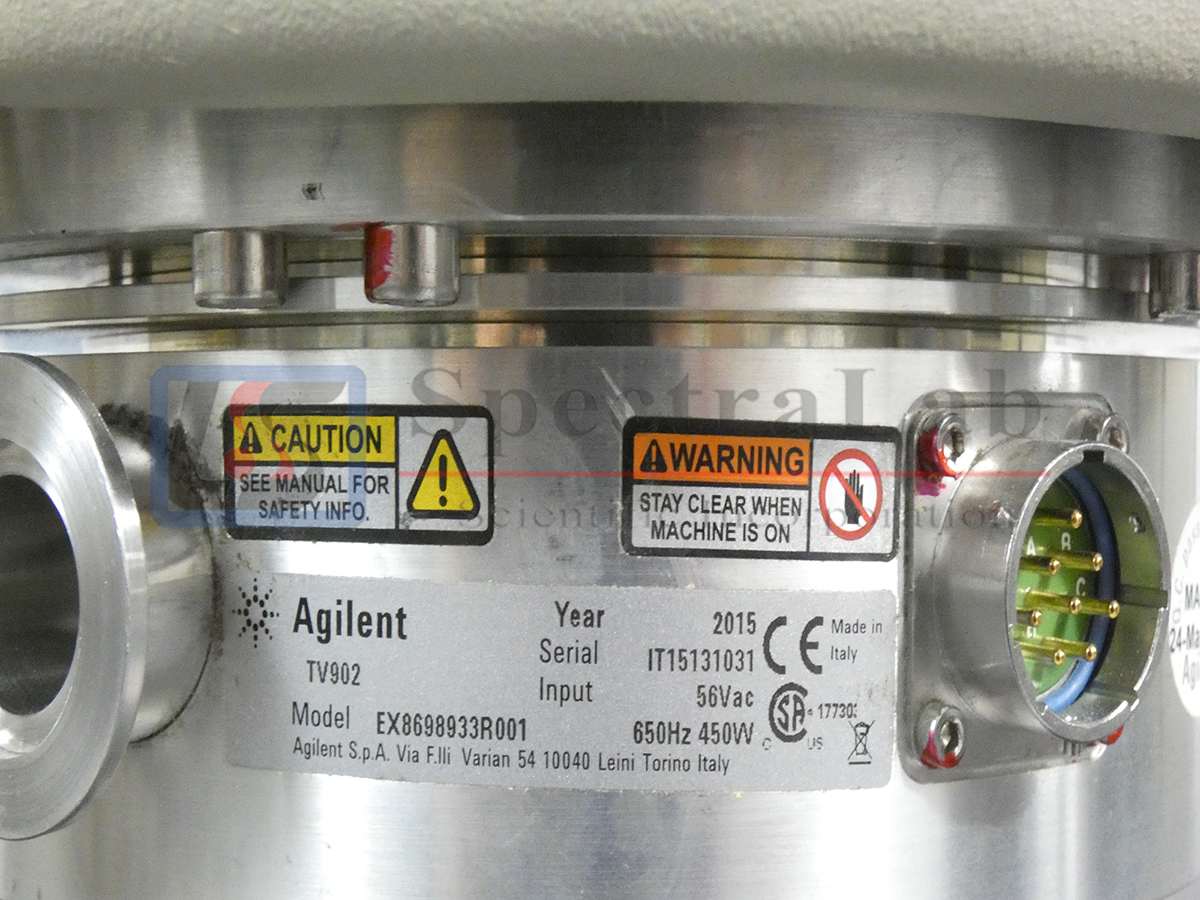

  • (1) Agilent TV902 Turbo Vacuum Pump (Model No. EX8698933R001)

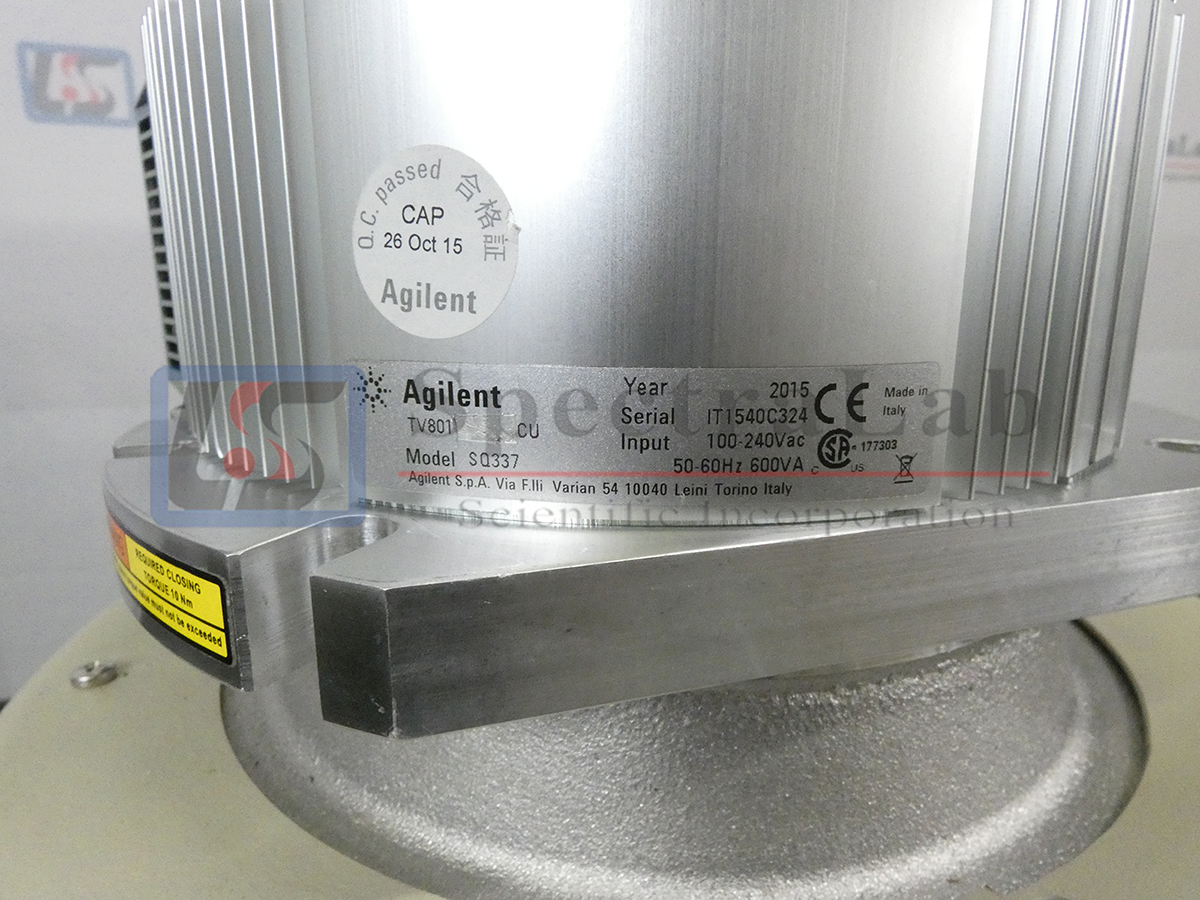

  • (1) Agilent TV801 Control Unit (Model No. SQ337)

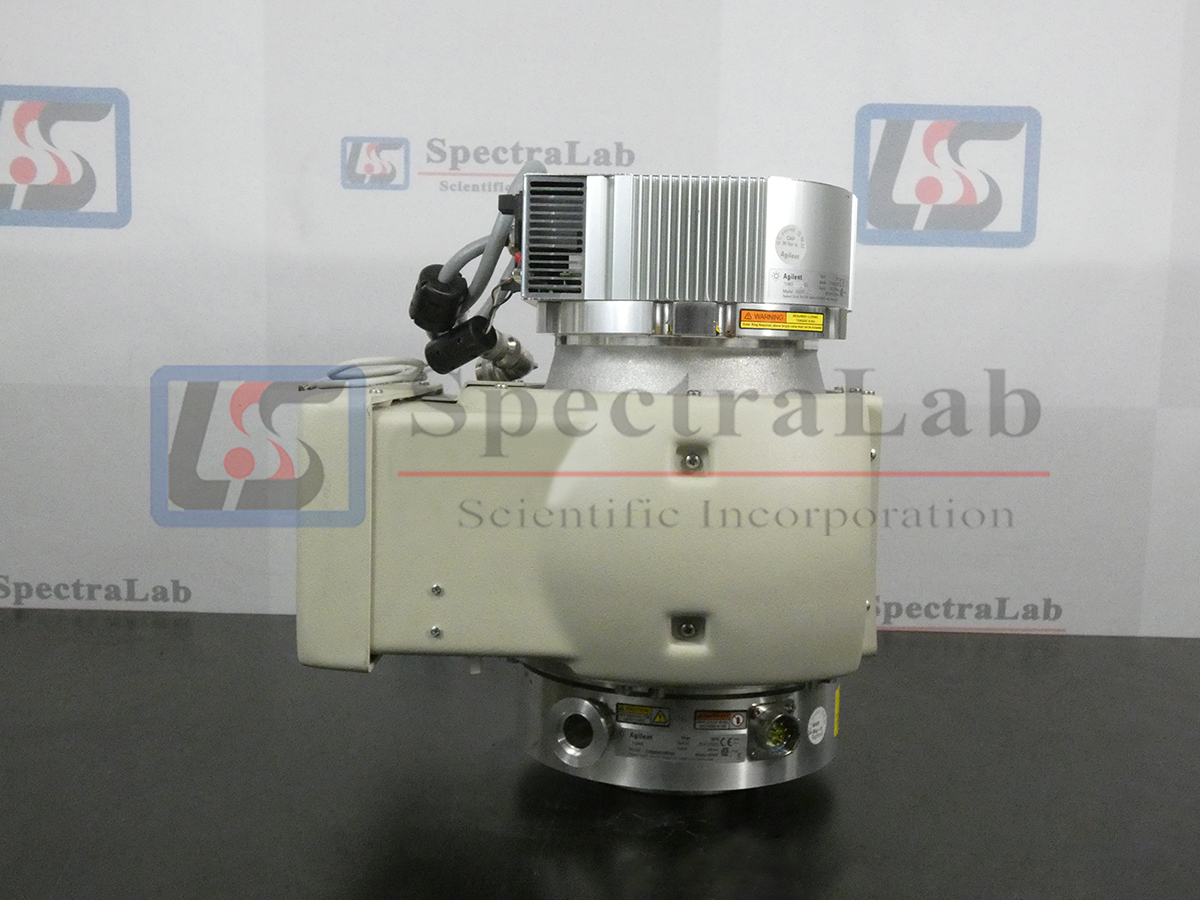

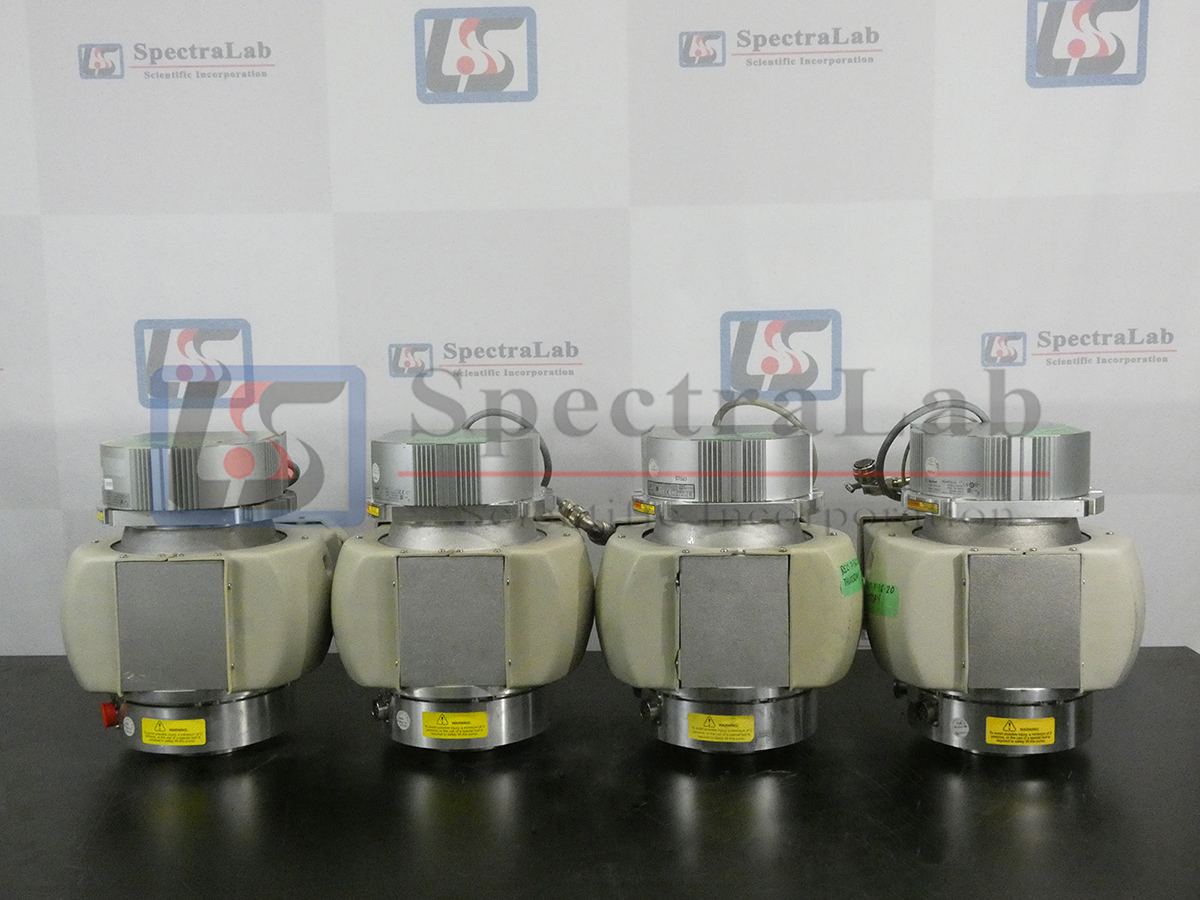

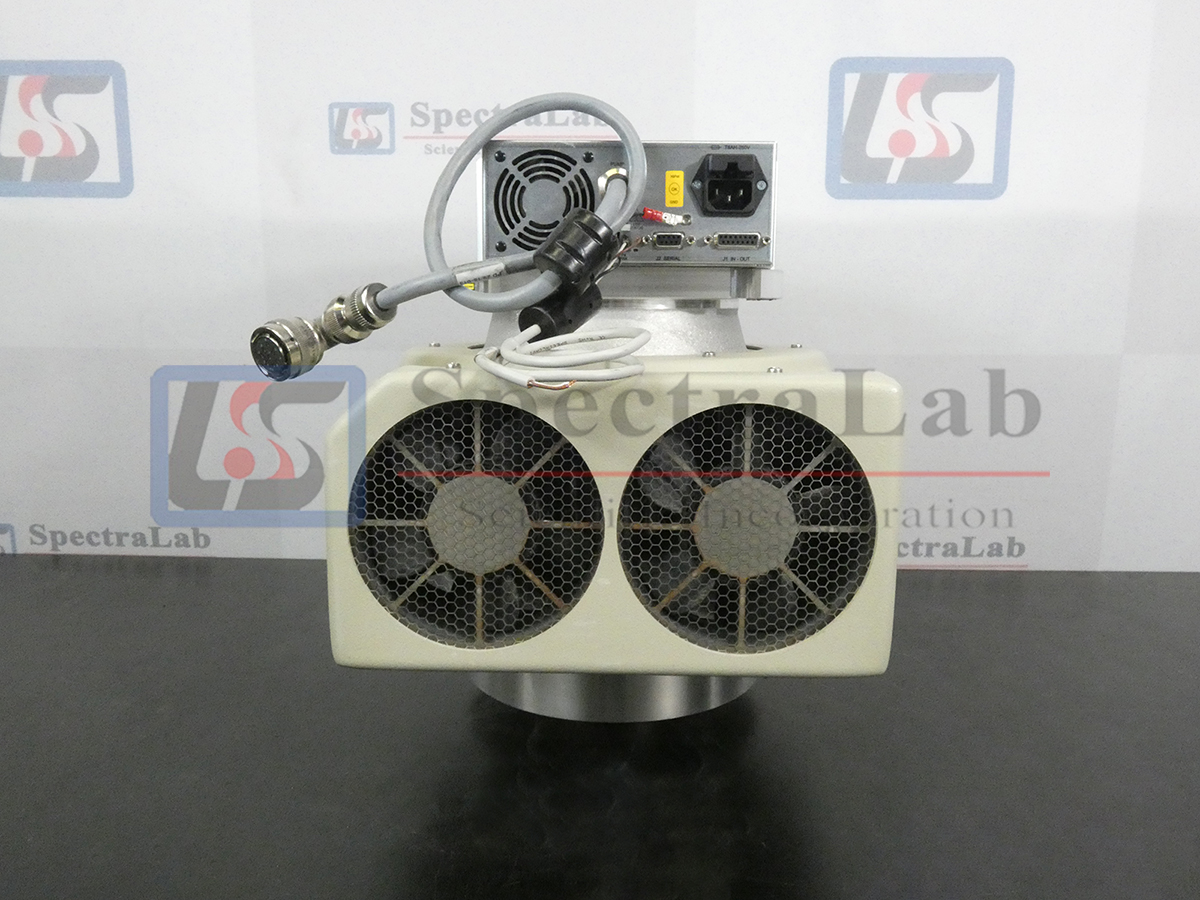

The Agilent TV 902 Navigator is composed by a pump (869-8933R001) with an envelope with fins and a shroud with two fans and a dedicated navigator controller (SQ 337). The pump is equipped with a custom ISO 160 F high vacuum flange. 4 pumps are available.

The Agilent TV902 Turbo Vacuum Pump is capable of operating at high foreline pressures because of the high speed to compression ratio. These pumps have silicon nitride, ceramic bearings.

Specifications:

Pumping speed (l/s) N2: 680 l/s, He: 810 l/s, H2: 850 l/s
Compression ratio N2: > 1 x 108, He: 1 x 105, H2: 1 x 104
Base pressure < 1 x 10-9 mbar
w/ recommended diaphragm fore pump: (< 1 x 10-9 Torr)
(According to standard DIN 28 428, the base pressure is that measured in a leak-free test dome, 48 hours after the completion of test dome bake-out, with a turbopump fitted with a conflat flange and using the recommended pre-vacuum pump)
Inlet flange custom ISO-160F
Foreline flange KF-25
Rotational speed 38,000 rpm
Start-up time < 4 minutes
Recommended forepump DS-402TriScroll 300
Operating position Any
Cooling requirements Forced air
Operating ambient temperature + 10°C to + 35°C
Bakeout temperature 120°C at inlet CF flange maximum 80°C with ISO flange
Vibration level (displacement) < 0.01 μm at inlet flange
Lubricant permanent lubrication
Noise level < 55 dB(A) at 1 meter
Power supply
Input voltage
Input freq.
Max input power
Stand-by power
Max operating power
100 – 240 VAC (± 10%)
50 – 60 Hz
600 VA
30 to 35 W
320 W with forced air
Protection fuse 1 x 8 A
Compliance with UNI EN 292-1
UNI EN 292-2
EN-CENELEC 55011
IEC 1000-4-2 (ex 801-2)
IEC 1000-4-3 (ex 801-3)
IEC 1000-4-4 (ex 801-4)
EN 61010-1 (IEC 1010-1)
EN 1012-2
Power cable w/ European or NEMA plug 3 meters long (optional)
Serial communication (Navigator kit) RS 232 cable with a 9-pin D type male connector and a 9-pin D type female connector, and Navigator software (optional)
Installation category II
Pollution degree 2
Storage temperature – 20°C to + 70°C
Weight kg (lbs)
Pump
Controller
23.5 (51.8)
5.4 (12)
