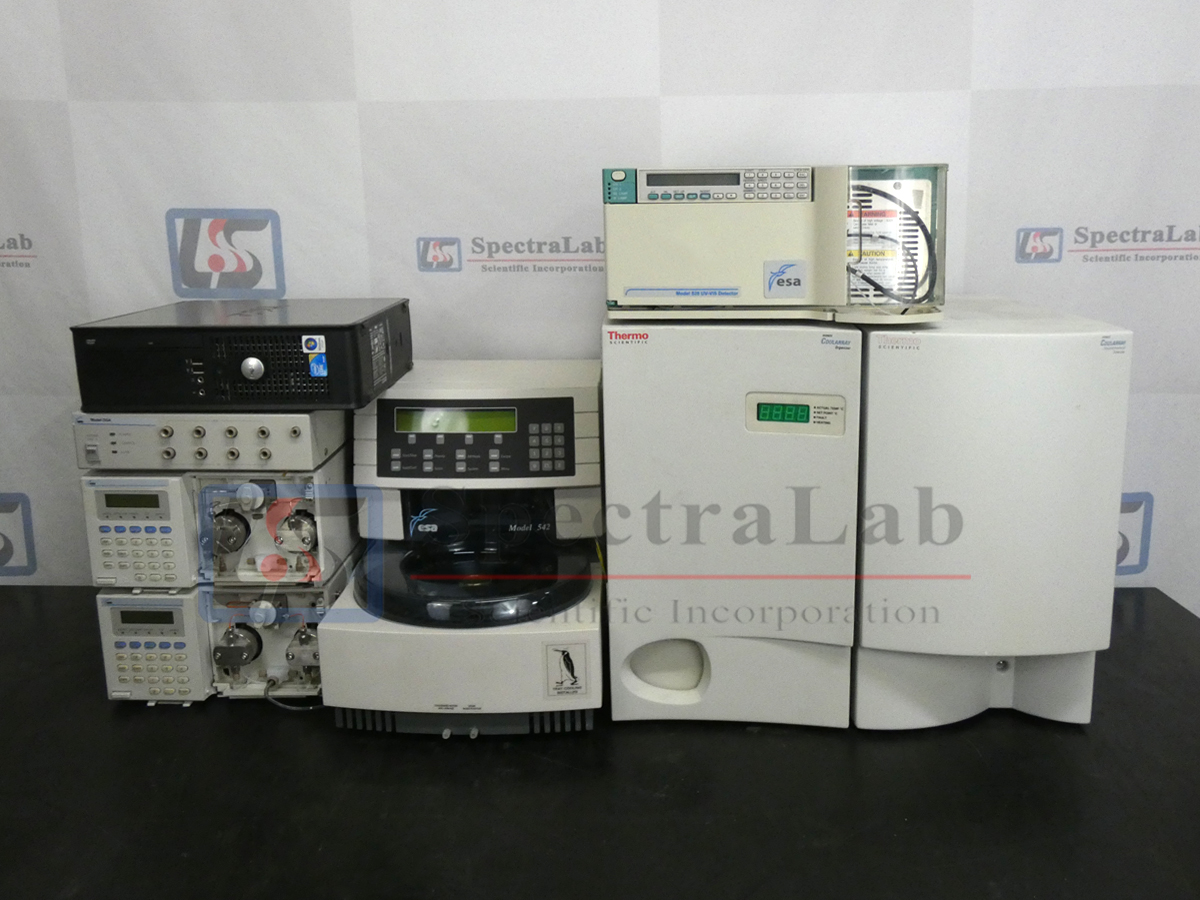

ESA Metabolomics HPLC System with 528 UV-Vis and 5600A CoulArray Detector with Software

ESA Metabolomics HPLC System with 528 UV-Vis and 5600A CoulArray Detector with Software
Item ID:


Condition: Refurbished

Availability: In Stock

Manufacturer: DionexPrice:

Request Quote/ Offer

Warranty Included, Onsite/ Remote Installation and Training Available


CAN/US: 3-5 business days
International: 5-10 business days

For assistance and further information:

Toll Free: 1-866-777-3688
Tel: 905-946-8066

Spectralab is your one stop shop for all your analytical laboratory needs!

Your source for


and Spectralab Scientific



We will match our competitor's price!

To Sell, Trade in, or Service Your Equipment

The ESA CoulArray Detector is a coulometric multi-electrode electrochemical detector for HPLC. The instrument is designed to detect and quantitate trace levels of electroactive compounds in complex matrices. A typical application is the qualitative and quantitative analysis of a broad range of biogenic amines in biological tissues.

System includes:

  • DG4 Degasser
  • 2x 582 Solvent Delivery Module (or 584)
  • 542 Autosampler
  • (optional) Column heater
  • 528 UV-Vis Detecetor
  • CoulArray Organizer Module
  • ESA/Dionex/Thermo 5600A CoulArray coulometric multi-electrode electrochemical Detector
  • PC with data


of Electrodes:
4, 8, 12, or 16 coulometric electrodes in series.
Independent potential control for each electrode from -1 volt to +2 volts in 1 mV increments,
accurate to ±1 mV.
±50 nA, ±5 μA, ±100 μA autoranged; full scale for each electrode and displayed from 10 pA to 100 μA.
2 points per second on each channel.
Autozero: Up to 5 μA on the 50 nA and 5 μA scale and 100 μA on the 100 μA scale.
<7 pA peak to peak (10 Mohm, 2 μF, low filter setting).
30 fA on 50nA gain range; 3 pA on 5μA gain range and 47 pA on 100 μA gain range
100/120/220/240V AC, 50/60 Hz.
Contact Closures:
8, programmable via software.
Contact Closures:
Communication Ports:
RS-232 from Computer to: Pump 1, Pump 2, Autosampler, Thermal Chamber
Temperature Range:
10 – 35°C (instrument or control module)
Temperature Range:
10 – 45° C(cells)
Humidity Range:
40 – 80% relative humidity
10 – 60° C(instrument or control module)
Dimensions: 16.75 in.(H) x 10.6 in. (W) x 17.0 in. (D)
(42.5 cm x 27.0 cm x 43.0 cm).
Weight: 12kg (26 lbs).
Certifications: UL, CSA, CE.

Request Quote:

*We do not share your information*

Address (City, State)
Email Confirmation
Your Budget/ Offer

Our refurbished instruments are tested and repaired to meet factory specifications. We follow Installation Qualification, Operational Qualification, and Performance Qualification protocols (IQ, PQ and OQ).

Our team of skilled technicians are experts at fixing analytical instruments. We have been working with Agilent, Waters, Perkin Elmer, Sciex, Shimadzu, and Thermo instruments for many years. We are constantly updating our knowledge with the latest technology and information to enable us to deliver the best support in the industry. We provide value added support and qualification/validation with all our instruments. We endeavor to develop strategic partnerships with our clients so that they consider our team as an extension of their employees. We are an affordable alternative to many normally expensive business projects.

Warranty and Support
We offer warranty on all refurbished instruments. Warranty starts at 3 months, with the option to extend the period. While your instrument is on warranty, we will provide Email ( and phone support and troubleshooting if you require assistance. If there is ever anything wrong with the equipment, we will replace it. Warranty begins from the date your equipment is successfully delivered. Any issues that occur during warranty should be reported immediately, describing the issues in as much detail as possible. Do not attempt to repair the equipment or involve a 3rd party without our express permission – this will result in voiding our warranty.

We will match our warranty duration with our competitors.

Installation and Training
If you purchase equipment from Spectralab Scientific, we offer installation and familiarization by our service technicians for an additional fee. If the instrument is particularly complicated, we highly recommend this service. If you’ve purchased less-complex equipment from us that you would like to install yourself, we can provide Team Viewer, email, or telephone support for no additional cost.

Large Inventory
We have a large inventory of equipment, components and parts in stock. You can find all the equipment you need for you lab in our store, as well as mix and match components for your systems.

International Shipping
We have sufficient export experience, including professional packing and proper documentation. Complementary shipping and handling can be applied upon immediate purchase. We include customs fees, brokerage, and duties for shipping to the US.

Price Matching & Discounts
Purchasing our refurbished instruments can save you anywhere from 30% to 90% compared to purchasing brand new. We will try to match or beat any price from our competitors, so feel free to inquire! Complementary shipping and handling can be applied upon immediate purchase.
